Oil pan GA8HP60-MH-XMH for BMW 4 Series G23 Convertible LCI 420i (2025)

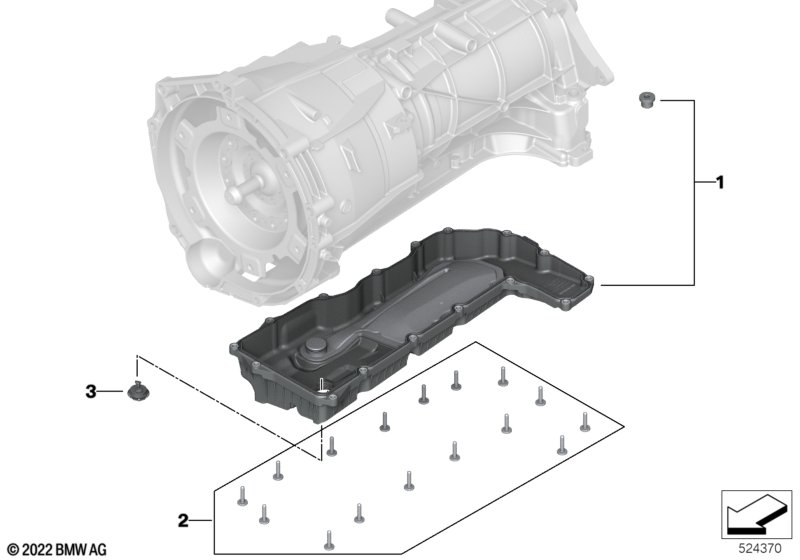

This Oil pan GA8HP60-MH-XMH technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pan automatic transmission | 1 | 24115A8B427 | Shop at ECS Tuning | ||||||
| 02 | Screw kit oil pan automatic transmission | M6X28,5 | 1 | 24115A13225 | Shop at ECS Tuning | |||||
| 03 | Oil drain plug, automatic transmission | 1 | 24115A8B411 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G23 Convertible LCI 420i Oil pan GA8HP60-MH-XMH?
- This technical diagram illustrates the Oil pan GA8HP60-MH-XMH within the Automatic transmission group for the 4 Series G23 Convertible LCI 420i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Oil pan automatic transmission (Part #24115A8B427).
- Which models use the hardware listed in this Oil pan GA8HP60-MH-XMH?
- The hardware and components featured in the Oil pan GA8HP60-MH-XMH are specific to the 4 Series G23 Convertible LCI 420i produced during 2025. These technical specifications ensure that parts like the Oil pan automatic transmission (24115A8B427) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil pan GA8HP60-MH-XMH assembly?
- Each item in the Oil pan GA8HP60-MH-XMH corresponds to the numbered list below the illustration. For the 4 Series G23 Convertible LCI 420i, you can identify the Oil pan automatic transmission by locating its position on the schematic, which then links to the official BMW part number 24115A8B427 for the Automatic transmission section.
