Sensor unit GA8HP60-MH-XMH for BMW 5 Series G68 Sedan 530LiX (2025)

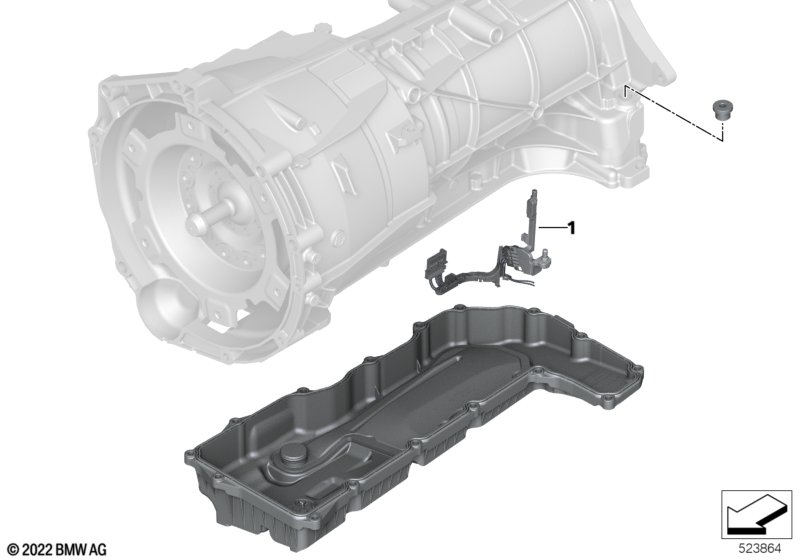

This Sensor unit GA8HP60-MH-XMH technical drawing provides a detailed breakdown of the assembly for the 5 Series G68 Sedan 530LiX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kit sensor unit | 1 | 24355A13237 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Screw kit oil pan automatic transmission | M6X28,5 | 1 | 24115A13225 | Shop at ECS Tuning | |||||
| -- | Oil pan automatic transmission | 1 | 24115A8B427 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G68 Sedan 530LiX Sensor unit GA8HP60-MH-XMH?
- This technical diagram illustrates the Sensor unit GA8HP60-MH-XMH within the Automatic transmission group for the 5 Series G68 Sedan 530LiX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Kit sensor unit (Part #24355A13237).
- Which models use the hardware listed in this Sensor unit GA8HP60-MH-XMH?
- The hardware and components featured in the Sensor unit GA8HP60-MH-XMH are specific to the 5 Series G68 Sedan 530LiX produced during 2025. These technical specifications ensure that parts like the Kit sensor unit (24355A13237) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sensor unit GA8HP60-MH-XMH assembly?
- Each item in the Sensor unit GA8HP60-MH-XMH corresponds to the numbered list below the illustration. For the 5 Series G68 Sedan 530LiX, you can identify the Kit sensor unit by locating its position on the schematic, which then links to the official BMW part number 24355A13237 for the Automatic transmission section.
