Output GA8HP60-60MH-80MH for BMW 4 Series G23 Convertible LCI 430i (2025)

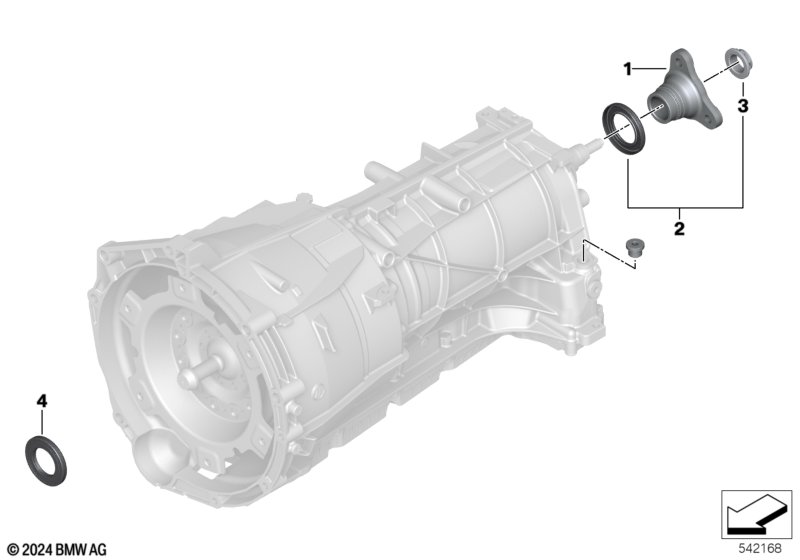

This Output GA8HP60-60MH-80MH technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Output flange automatic transmission | LK 96 | 1 | 24215A67360 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair kit shaft seal output | 8HP60 | 1 | 24275A13226 | Shop at ECS Tuning | |||||
| -- | Screw plug | M18X1,5 | 1 | 07145A7A846 | Shop at ECS Tuning | |||||
| 02 | Repair kit shaft seal output | 8HP60 | 1 | 24275A13226 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Screw Plug With Gasket Ring | M18X1,5 | 1 | 24117552349 | $7.65 | Shop at ECS Tuning | ||||
| 03 | Collar nut | M27X1,5 | 1 | 24207588761 | Shop at ECS Tuning | |||||
| 04 | Shaft seal | 1 | 24125A86138 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Screw plug | M18X1,5 | 1 | 07145A7A846 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
