Exhaust fan GA8HP60MH/XMH/80MH/XMH for BMW 3 Series G20 Sedan LCI M340i (2025)

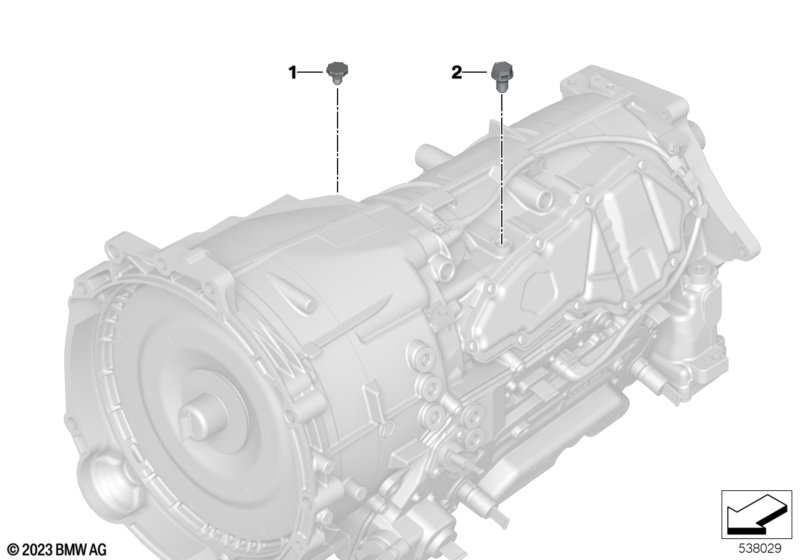

This Exhaust fan GA8HP60MH/XMH/80MH/XMH technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI M340i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kit exhaust fan automatic transmission | 1 | 24145A13227 | Shop at ECS Tuning | ||||||
| 02 | Pressure compensating valve | 1 | 24005A67369 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan LCI M340i Exhaust fan GA8HP60MH/XMH/80MH/XMH?
- This technical diagram illustrates the Exhaust fan GA8HP60MH/XMH/80MH/XMH within the Automatic transmission group for the 3 Series G20 Sedan LCI M340i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Kit exhaust fan automatic transmission (Part #24145A13227).
- Which models use the hardware listed in this Exhaust fan GA8HP60MH/XMH/80MH/XMH?
- The hardware and components featured in the Exhaust fan GA8HP60MH/XMH/80MH/XMH are specific to the 3 Series G20 Sedan LCI M340i produced during 2025. These technical specifications ensure that parts like the Kit exhaust fan automatic transmission (24145A13227) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust fan GA8HP60MH/XMH/80MH/XMH assembly?
- Each item in the Exhaust fan GA8HP60MH/XMH/80MH/XMH corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan LCI M340i, you can identify the Kit exhaust fan automatic transmission by locating its position on the schematic, which then links to the official BMW part number 24145A13227 for the Automatic transmission section.
