Mechatronics GA8HP60MH for BMW 5 Series G60 Sedan 520i (2024)

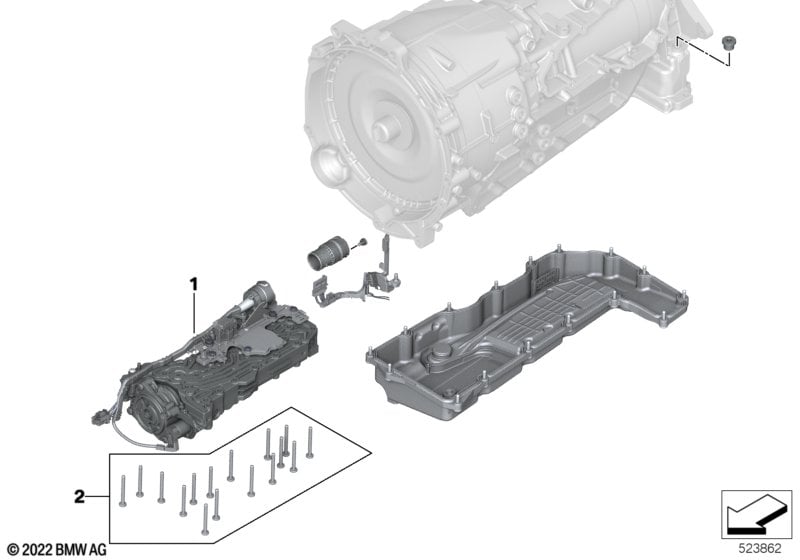

This Mechatronics GA8HP60MH technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Emissions standard EU6 rde II and COC ADDITIONAL SCOPES |
S1DFA=Yes S8R3A=Yes |
|||||||||
| 01 | Mechatronic | 1 | 24345B33AE1 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Kit sensor unit | 1 | 24355A13237 | Shop at ECS Tuning | ||||||
| -- | Repair kit guide bush | 1 | 24275A13228 | Shop at ECS Tuning | ||||||
| -- | Kit oil pan automatic transmission | 1 | 24115A13223 | Shop at ECS Tuning | ||||||
| 02 | Kit screws mechatronics | M6X59 | 1 | 24345A13233 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 520i Mechatronics GA8HP60MH?
- This technical diagram illustrates the Mechatronics GA8HP60MH within the Automatic transmission group for the 5 Series G60 Sedan 520i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Mechatronic (Part #24345B33AE1).
- Which models use the hardware listed in this Mechatronics GA8HP60MH?
- The hardware and components featured in the Mechatronics GA8HP60MH are specific to the 5 Series G60 Sedan 520i produced during 2024. These technical specifications ensure that parts like the Mechatronic (24345B33AE1) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mechatronics GA8HP60MH assembly?
- Each item in the Mechatronics GA8HP60MH corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 520i, you can identify the Mechatronic by locating its position on the schematic, which then links to the official BMW part number 24345B33AE1 for the Automatic transmission section.
