Power electronics 8HP60MH/80MH/XMH for BMW 5 Series G60 Sedan 520i (2025)

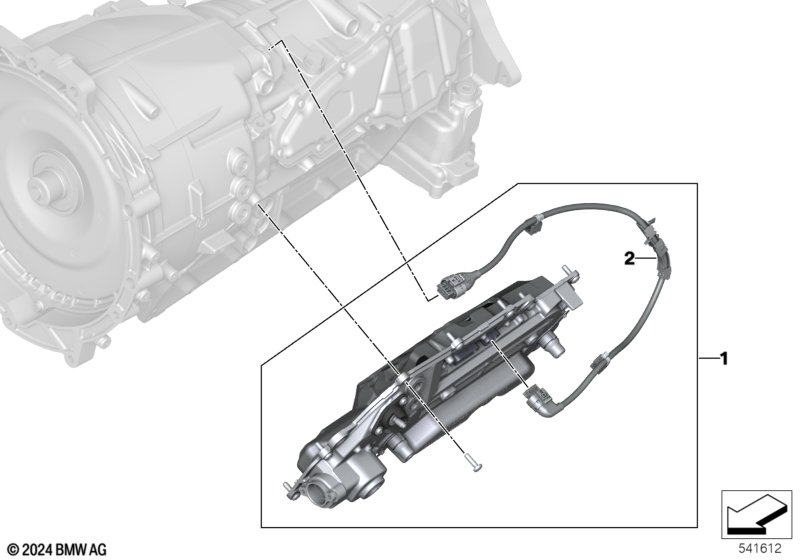

This Power electronics 8HP60MH/80MH/XMH technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Power electronics not yet available | ||||||||||
| 01 | Part not available separately | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| For vehicles with Emissions standard EU6 rde II and COC ADDITIONAL SCOPES |
S1DFA=Yes S8R3A=Yes |
|||||||||
| 02 | Wiring harness power electronics | 1 | 24155A67364 | Shop at ECS Tuning | ||||||
