Output GA8P80/100XPH for BMW 7 Series G70 750eX (2024)

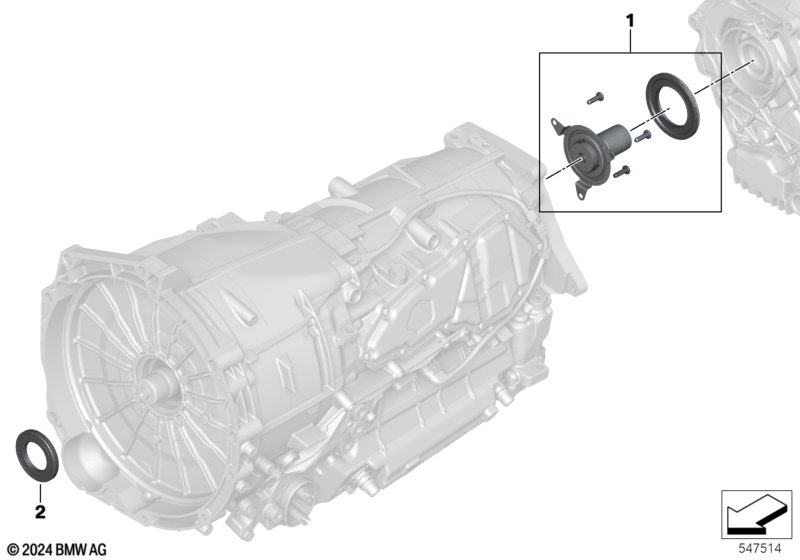

This Output GA8P80/100XPH technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 750eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair kit, shaft seal | 1 | 24275A84739 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Screw plug | M18X1,5 | 1 | 07145A7A846 | Shop at ECS Tuning | |||||
| 02 | Shaft seal | 1 | 24125A86138 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Screw plug | M18X1,5 | 1 | 07145A7A846 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
