Wiring harness mechatronic GA8P80/100XPH for BMW 5 Series G60 Sedan 530e (2025)

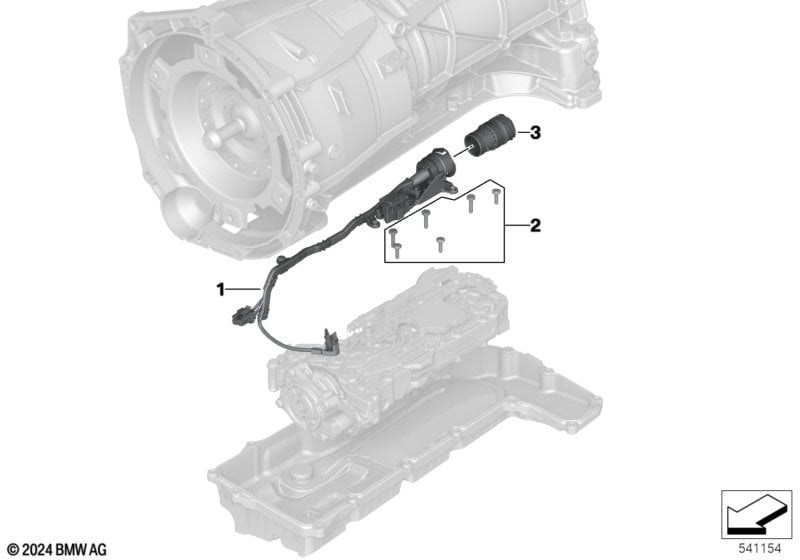

This Wiring harness mechatronic GA8P80/100XPH technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring harness mechatronics | 1 | 24365A67368 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair kit guide bush | 1 | 24275A13228 | Shop at ECS Tuning | ||||||
| -- | Kit oil pan automatic transmission | 1 | 24115A13224 | Shop at ECS Tuning | ||||||
| 02 | Kit screws wiring harness mechatronics | M5X25 / M5X16 | 1 | 24365A13235 | Shop at ECS Tuning | |||||
| 03 | Repair kit guide bush | 1 | 24275A13228 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 530e Wiring harness mechatronic GA8P80/100XPH?
- This technical diagram illustrates the Wiring harness mechatronic GA8P80/100XPH within the Automatic transmission group for the 5 Series G60 Sedan 530e produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Wiring harness mechatronics (Part #24365A67368).
- Which models use the hardware listed in this Wiring harness mechatronic GA8P80/100XPH?
- The hardware and components featured in the Wiring harness mechatronic GA8P80/100XPH are specific to the 5 Series G60 Sedan 530e produced during 2025. These technical specifications ensure that parts like the Wiring harness mechatronics (24365A67368) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wiring harness mechatronic GA8P80/100XPH assembly?
- Each item in the Wiring harness mechatronic GA8P80/100XPH corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 530e, you can identify the Wiring harness mechatronics by locating its position on the schematic, which then links to the official BMW part number 24365A67368 for the Automatic transmission section.
