Parking lock module GA8P80/100XPH for BMW 5 Series G99 M5 Touring M5 (2025)

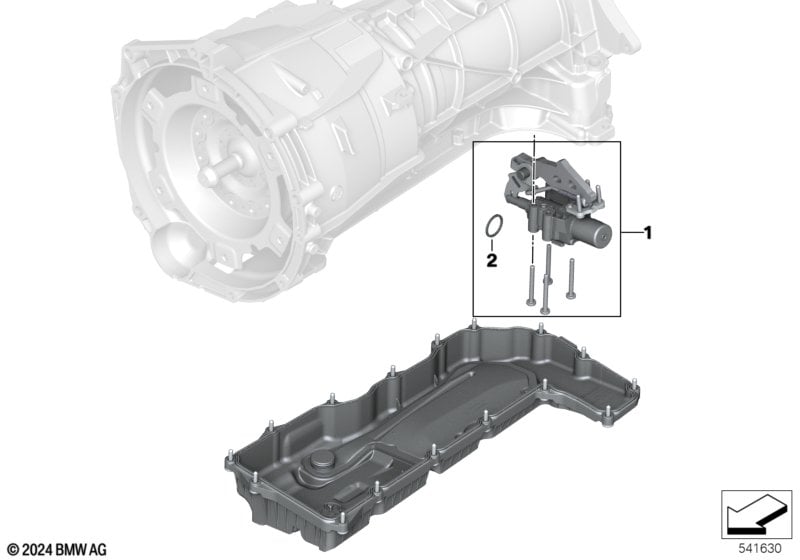

This Parking lock module GA8P80/100XPH technical drawing provides a detailed breakdown of the assembly for the 5 Series G99 M5 Touring M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kit parking lock module | 1 | 24535A13236 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Oil pan automatic transmission | 1 | 24005A67388 | Shop at ECS Tuning | ||||||
| 02 | Sealing ring, parking lock module | 1 | 24535A86141 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G99 M5 Touring M5 Parking lock module GA8P80/100XPH?
- This technical diagram illustrates the Parking lock module GA8P80/100XPH within the Automatic transmission group for the 5 Series G99 M5 Touring M5 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Kit parking lock module (Part #24535A13236).
- Which models use the hardware listed in this Parking lock module GA8P80/100XPH?
- The hardware and components featured in the Parking lock module GA8P80/100XPH are specific to the 5 Series G99 M5 Touring M5 produced during 2025. These technical specifications ensure that parts like the Kit parking lock module (24535A13236) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Parking lock module GA8P80/100XPH assembly?
- Each item in the Parking lock module GA8P80/100XPH corresponds to the numbered list below the illustration. For the 5 Series G99 M5 Touring M5, you can identify the Kit parking lock module by locating its position on the schematic, which then links to the official BMW part number 24535A13236 for the Automatic transmission section.
