A5S360R/390R oil pan/oil strainer for BMW 3 Series E46 318i (2003)

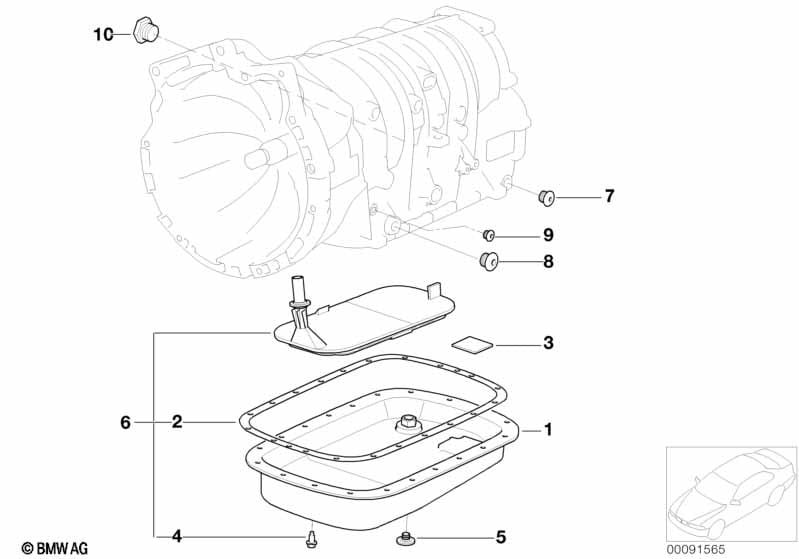

This A5S360R/390R oil pan/oil strainer technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 24117533832 | $98.27 | Shop at ECS Tuning | |||||
| 02 | Gasket, oil pan | 1 | 24117524707 | $28.95 | Shop at ECS Tuning | |||||
| 03 | Magnet | 1 | 03/2021 | 24117560575 | $5.07 | Shop at ECS Tuning | ||||
| 03 | Magnet | 1 | 24111206468 | $4.62 | Shop at ECS Tuning | |||||
| 04 | Screw | M6X16 | 20 | 24117533655 | $1.23 | Shop at ECS Tuning | ||||
| 05 | Oil drain plug | 1 | 06/2003 | 24117533937 | $7.43 | Shop at ECS Tuning | ||||
| 06 | Set oil filter | 1 | 24117557070 | $105.69 | Shop at ECS Tuning | |||||
| 08 | Screw plug, inner Torx | 1 | 24111423986 | $8.32 | Shop at ECS Tuning | |||||
| 09 | Screw plug, inner hexagon | 1 | 24117533656 | $6.08 | Shop at ECS Tuning |
