Selector lever handles / covers for BMW 5 Series E39 523i (2000)
This Selector lever handles / covers technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | GEAR SELECTING LEVER COVER SET OF WOODEN COVERS HG 51 |
|||||||||
| 01 | Selector lever handle,leath,plastic ring | SCHWARZ | 1 | 09/1998 | 25161423500 | $93.07 | Shop at ECS Tuning | |||
| 01 | Selector lever handle,leath,plastic ring | GRAU | 1 | 09/1998 | 25161423501 | $84.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Selector lever handle,leath,plastic ring | BEIGE | 1 | 09/1998 | 25161423502 | $69.50 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Interior surface aluminium |
S434A=Yes |
|||||||||
| 01 | Selector lever handle,leath.,chrome ring | CHROM-MATT | 1 | 09/1998 | 25162229444 | $78.50 | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim |
S438A=Yes |
|||||||||
| 02 | Selector lever handle,leath,plastic ring | SCHWARZ | 1 | 25161423500 | $93.07 | Shop at ECS Tuning | ||||
| For vehicles with Fine wood trim |
S773A=Yes |
|||||||||
| 02 | Selector lever handle,leath.,w/wood ring | VAVONA | 1 | 25161422379 | $171.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Steptronic |
S202A=Yes |
|||||||||
| 03 | Leather boot | SCHWARZ | 1 | 25161422111 | $73.03 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 523i Selector lever handles / covers?

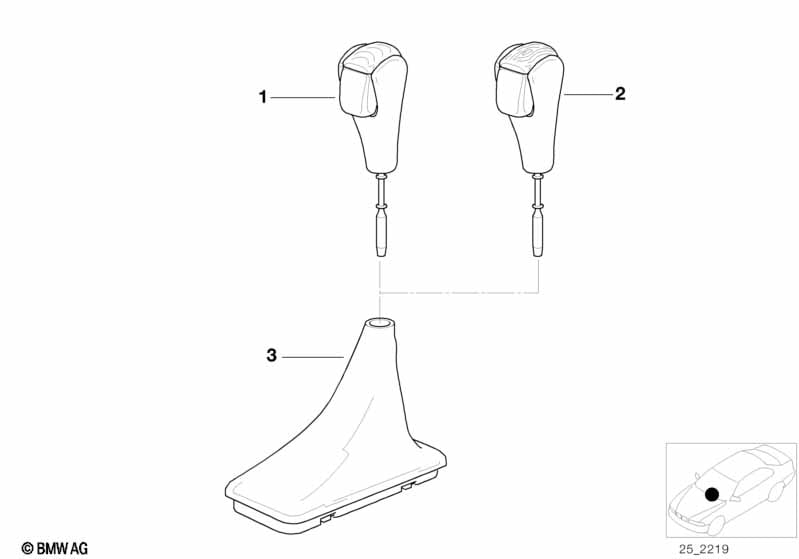

- This technical diagram illustrates the Selector lever handles / covers within the Gearshift group for the 5 Series E39 523i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Selector lever handle,leath,plastic ring (Part #25161423500).
- Which models use the hardware listed in this Selector lever handles / covers?
- The hardware and components featured in the Selector lever handles / covers are specific to the 5 Series E39 523i produced during 2000. These technical specifications ensure that parts like the Selector lever handle,leath,plastic ring (25161423500) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Selector lever handles / covers assembly?
- Each item in the Selector lever handles / covers corresponds to the numbered list below the illustration. For the 5 Series E39 523i, you can identify the Selector lever handle,leath,plastic ring by locating its position on the schematic, which then links to the official BMW part number 25161423500 for the Gearshift section.
