Shift interlock automatic transm. japan for BMW 5 Series E34 535i (1992)

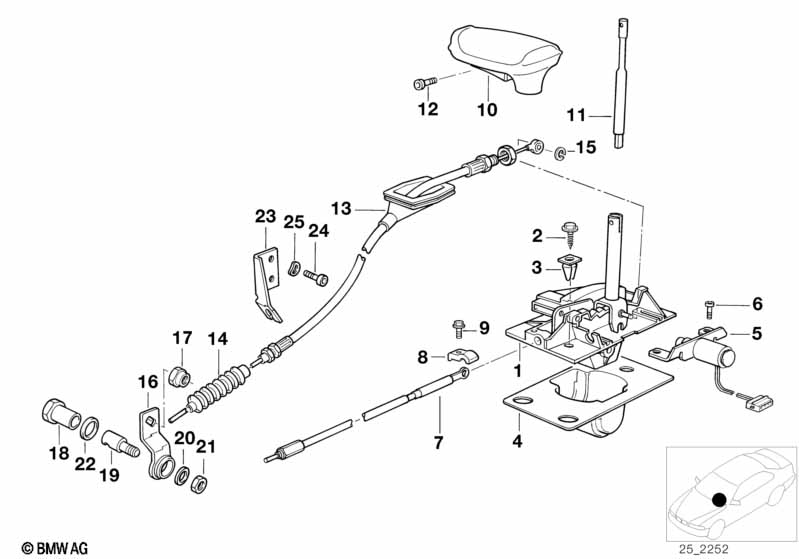

This Shift interlock automatic transm. japan technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 4HP22 4HP24 For vehicles with National version japan |
L807A=Yes |
||||||||
| 01 | Gear shift lug | INTERLOCK | 1 | 07/1992 | 25161219200 | $172.63 | ENDED | Shop at ECS Tuning | ||
| No further intervention permitted | ||||||||||
| 02 | Hex head screw | ST6,3X22-C-Z1 | 3 | 07/1992 | 07119916969 | $0.29 | ENDED | Shop at ECS Tuning | ||
| 03 | Prestol-cage | ST6,3-ZNS | 3 | 07/1992 | 07129901748 | $0.25 | ENDED | Shop at ECS Tuning | ||
| 03 | Body nut | ST 6,3 - 9 | 3 | 07/1992 | 07129904216 | $0.25 | Shop at ECS Tuning | |||
| 04 | Sound insulation | 1 | 07/1992 | 25161215581 | $26.90 | Shop at ECS Tuning | ||||
| 05 | Magnet | 1 | 07/1992 | 25161218438 | $165.70 | Shop at ECS Tuning | ||||
| 06 | Fillister-head screw | M6X14 | 2 | 07/1992 | 07119906475 | $1.54 | Shop at ECS Tuning | |||
| 07 | Interlock cable | 1 | 07/1992 | 32311161865 | $32.22 | Shop at ECS Tuning | ||||
| 08 | Interlock cable bracket | 1 | 07/1992 | 32311160323 | $2.70 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6 | 1 | 07/1992 | 32311160657 | $0.83 | Shop at ECS Tuning | |||
| 10 | Selector lever handle,wood vogelaugenah. | GRAPHIT 0130 | 1 | 25112136166 | $221.19 | ENDED, +core | Shop at ECS Tuning | |||
| 10 | Selector lever handle,wood vogelaugenah. | GRAU 0120 | 1 | 25162252677 | $221.19 | ENDED, +core | Shop at ECS Tuning | |||
| 10 | Selector-lever grip, leather | SCHWARZ | 1 | 07/1992 | 25161216464 | $233.95 | +core | Shop at ECS Tuning | ||
| 10 | Plastic selector lever handle | SCHWARZ | 1 | 07/1992 | 25161216905 | $22.75 | Shop at ECS Tuning | |||
| 10 | Buffalo selector lever handle | HAVANNA | 1 | 07/1992 | 25161216995 | $161.82 | ENDED | Shop at ECS Tuning | ||
| 10 | Buffalo selector lever handle | SIAMGRAU | 1 | 07/1992 | 25161217417 | $161.82 | ENDED | Shop at ECS Tuning | ||
| 10 | Buffalo selector lever handle | ANTHRAZIT | 1 | 07/1992 | 25161219771 | $161.82 | ENDED | Shop at ECS Tuning | ||
| 10 | Buffalo selector lever handle | BRASIL | 1 | 07/1992 | 25161219777 | $161.82 | ENDED | Shop at ECS Tuning | ||
| 10 | Selector lever handle,wood nussb.-wurzel | HOCHGL./91 | 1 | 07/1992 | 25161421590 | $171.95 | +core | Shop at ECS Tuning | ||
| 11 | Pull rod | L=121MM | 1 | 07/1992 | 25161219755 | $8.90 | Shop at ECS Tuning | |||
| 12 | Fillister-head screw | M4X8 | 1 | 07/1992 | 25161215780 | $0.55 | Shop at ECS Tuning | |||
| 13 | Cable noise absorbing | 1 | 07/1992 | 25161218349 | $31.92 | Shop at ECS Tuning | ||||
| 14 | Cup | 1 | 07/1992 | 25161216241 | $7.25 | Shop at ECS Tuning | ||||
| 15 | Circlip | 4,0 | 1 | 07/1992 | 07119932822 | $0.09 | Shop at ECS Tuning | |||
| 16 | Selector lever | ZF | 1 | 07/1992 | 24511216211 | $10.32 | Shop at ECS Tuning | |||
| 17 | Self-locking hex nut | M8X1 | 1 | 07/1992 | 24517542700 | $0.27 | Shop at ECS Tuning | |||
| 18 | Bush | 1 | 07/1992 | 25161215109 | $3.85 | Shop at ECS Tuning | ||||
| 19 | Pin | 1 | 07/1992 | 25161215111 | $11.80 | Shop at ECS Tuning | ||||
| 20 | Washer | 8,4X16X1,6-ZNNV | 1 | 07/1992 | 07119907030 | Shop at ECS Tuning | ||||
| 21 | Self-locking hex nut | M8 | 1 | 07/1992 | 07129922716 | $0.36 | Shop at ECS Tuning | |||
| 22 | Shim | 13X19X0,5 | 1 | 07/1992 | 07119932641 | $0.11 | Shop at ECS Tuning | |||
| 23 | Support noise absorbing | ZF | 1 | 07/1992 | 24511218351 | $32.71 | ENDED | Shop at ECS Tuning | ||
| 24 | Fillister-head screw | M6X18 | 1 | 07/1992 | 07119902644 | ENDED | Shop at ECS Tuning | |||
| 25 | Spring washer Black | B6-ZN | 1 | 07/1992 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
