Gearshift manual transmission for BMW 5 Series E28 M535i (1987)

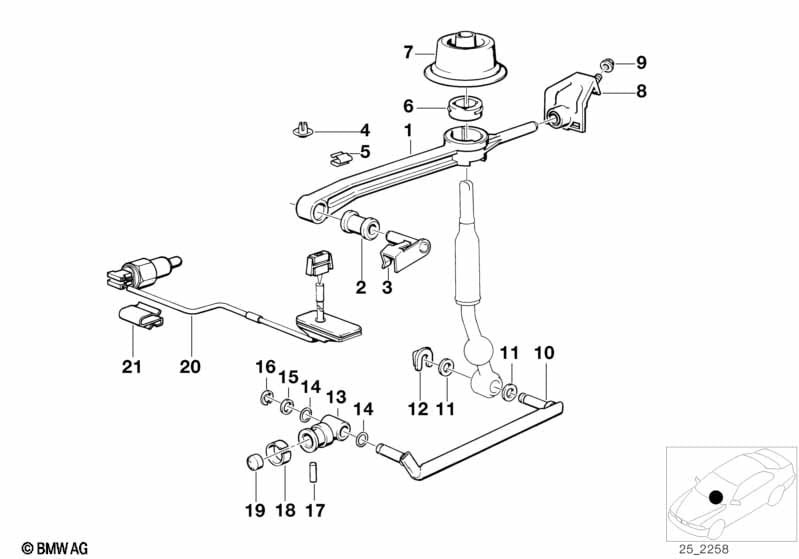

This Gearshift manual transmission technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shifting arm | 1 | 09/1985 | 25111220900 | $37.90 | Shop at ECS Tuning | ||||
| 02 | Bearing sleeve, round | L=26MM | 1 | 09/1985 | 25117519669 | $11.92 | Shop at ECS Tuning | |||
| 03 | Bolt | D=10MMX40MM | 1 | 09/1985 | 25111221849 | $4.97 | Shop at ECS Tuning | |||
| 05 | Cable clamp | 1 | 09/1985 | 25111220837 | $0.68 | ENDED | Shop at ECS Tuning | |||
| 06 | Bearing, shift lever | 1 | 09/1985 | 25111220600 | $10.33 | Shop at ECS Tuning | ||||
| 07 | Rubber boot | 1 | 09/1985 | 25111220912 | $15.39 | Shop at ECS Tuning | ||||
| 08 | Bearing, shifting arm | 1 | 09/1985 | 25111220707 | $27.05 | Shop at ECS Tuning | ||||
| 09 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 09/1985 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 10 | Straight selector rod | 1 | 09/1985 | 25111220565 | $31.95 | Shop at ECS Tuning | ||||
| 10 | Selector rod | 1 | 09/1985 | 25111220910 | $149.15 | Shop at ECS Tuning | ||||
| 11 | Plastic washer | 10X16X0,9 | 2 | 09/1985 | 25111220439 | $0.25 | Shop at ECS Tuning | |||
| 12 | Securing clip | 1 | 09/1985 | 25117571899 | $0.66 | Shop at ECS Tuning | ||||
| 13 | Gearshift rod joint | 1 | 09/1985 | 25117501212 | $38.49 | Shop at ECS Tuning | ||||
| 14 | O-ring | 10X2,2 | 2 | 09/1985 | 25111221243 | $0.80 | Shop at ECS Tuning | |||
| 15 | Shim | 16X10,2X0,65 | 1 | 09/1985 | 25111220199 | $0.30 | Shop at ECS Tuning | |||
| 16 | Circlip | 1 | 09/1985 | 07119904622 | $1.28 | Shop at ECS Tuning | ||||
| 16 | Circlip | 8,0 | 1 | 09/1985 | 07119932863 | $0.11 | Shop at ECS Tuning | |||
| 17 | Dowel pin | 1 | 09/1985 | 23411466134 | $0.70 | Shop at ECS Tuning | ||||
| 18 | Tension bush | 1 | 09/1985 | 25111203682 | $1.18 | Shop at ECS Tuning | ||||
| 19 | Plastic washer | 1 | 09/1985 | 25111434194 | $0.85 | Shop at ECS Tuning | ||||
| 20 | Tubing backup light switch | 1 | 09/1985 | 23141220263 | $32.45 | Shop at ECS Tuning | ||||
| 21 | Cable clamp | 1 | 09/1985 | 12527575212 | $0.78 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
