Gearshift manual transmission for BMW 3 Series E30 M3 (1990)

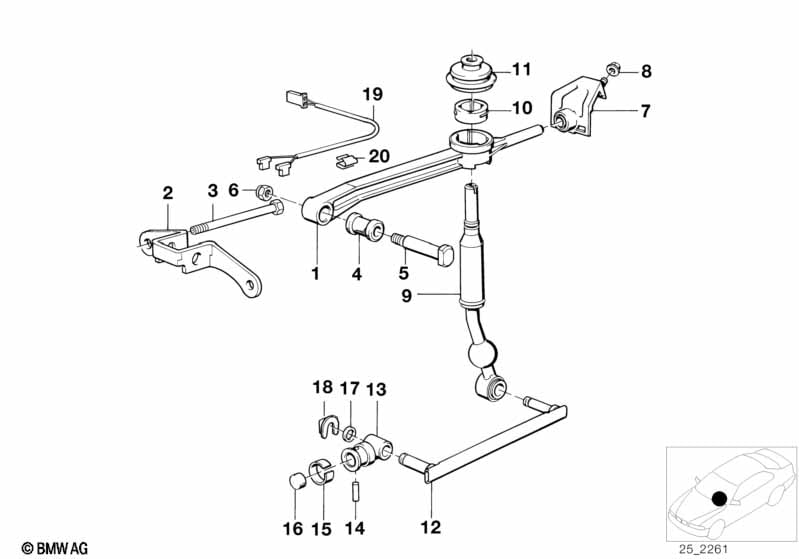

This Gearshift manual transmission technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shifting arm | 1 | 25111221201 | $37.80 | Shop at ECS Tuning | |||||
| 02 | Bow | 1 | 25112225369 | $5.18 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M8X140 | 2 | 07119912588 | $5.19 | ENDED | Shop at ECS Tuning | |||
| 04 | Bearing sleeve, round | L=26MM | 1 | 25117519669 | $11.92 | Shop at ECS Tuning | ||||
| 05 | Pin | 1 | 25112225344 | $4.97 | Shop at ECS Tuning | |||||
| 06 | Self-locking collar nut | M8-8-ZNS3 | 1 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Self-locking collar nut | M8-10 ZNS3 | 1 | 07119905374 | Shop at ECS Tuning | |||||
| 07 | Bearing, shifting arm | 1 | 25111220707 | $27.05 | Shop at ECS Tuning | |||||
| 08 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 09 | Shift lever | 1 | 25112225786 | $117.63 | Shop at ECS Tuning | |||||
| 10 | Bearing, shift lever | 1 | 25111220600 | $10.33 | Shop at ECS Tuning | |||||
| 11 | Rubber boot | 1 | 25111220912 | $15.39 | Shop at ECS Tuning | |||||
| 12 | Straight selector rod | 1 | 25111220322 | $30.39 | Shop at ECS Tuning | |||||
| 13 | Gearshift rod joint | SCHWARZ | 1 | 25117503525 | $37.51 | Shop at ECS Tuning | ||||
| 14 | Dowel pin | 1 | 23411466134 | $0.70 | Shop at ECS Tuning | |||||
| 15 | Tension bush | 1 | 25111203682 | $1.18 | Shop at ECS Tuning | |||||
| 16 | Plastic washer | 1 | 25111434194 | $0.85 | Shop at ECS Tuning | |||||
| 17 | Plastic washer | 10X16X0,9 | 4 | 25111220439 | $0.25 | Shop at ECS Tuning | ||||
| 18 | Securing clip | 2 | 25117571899 | $0.66 | Shop at ECS Tuning | |||||
| 19 | Tubing backup light switch | 1 | 23141220284 | $8.14 | Shop at ECS Tuning | |||||
| 20 | Cable clamp | 2 | 25111220837 | $0.68 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 M3 Gearshift manual transmission?
- This technical diagram illustrates the Gearshift manual transmission within the Gearshift group for the 3 Series E30 M3 produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Shifting arm (Part #25111221201).
- Which models use the hardware listed in this Gearshift manual transmission?
- The hardware and components featured in the Gearshift manual transmission are specific to the 3 Series E30 M3 produced during 1990. These technical specifications ensure that parts like the Shifting arm (25111221201) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Gearshift manual transmission assembly?
- Each item in the Gearshift manual transmission corresponds to the numbered list below the illustration. For the 3 Series E30 M3, you can identify the Shifting arm by locating its position on the schematic, which then links to the official BMW part number 25111221201 for the Gearshift section.
