Gearshift automatic transmission for BMW 5 Series E28 528e (1987)

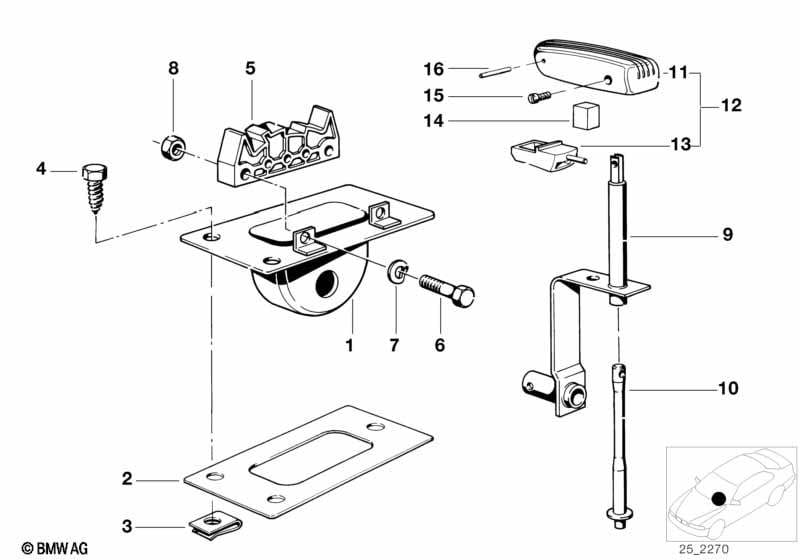

This Gearshift automatic transmission technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 3HP22 | |||||||||
| 01 | Supporting bracket | 1 | 09/1982 | 25161215390 | $16.18 | ENDED | Shop at ECS Tuning | |||
| 02 | Sound absorber | 1 | 25161204778 | $0.89 | ENDED | Shop at ECS Tuning | ||||
| 05 | Shifting gate | 1 | 25161204770 | $8.32 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X16-8.8-ZNS3 | 2 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Shift lever-upper part | 1 | 25161209924 | $46.87 | ENDED | Shop at ECS Tuning | ||||
| 10 | Pull rod | 1 | 25161204764 | $27.43 | Shop at ECS Tuning | |||||
| 12 | Selector lever handle | 1 | 25161215200 | $51.62 | ENDED | Shop at ECS Tuning | ||||
| 12 | Plastic selector lever handle | SCHWARZ | 1 | 25161216905 | $22.75 | Shop at ECS Tuning | ||||
| 12 | Selector-lever grip, leather | SCHWARZ | 1 | 25161216464 | $233.95 | +core | Shop at ECS Tuning | |||
| 12 | Selector lever handle,wood nussb.-wurzel | HOCHGL./91 | 1 | 25161421590 | $171.95 | +core | Shop at ECS Tuning | |||
| 14 | Spring | 1 | 25161206316 | $7.38 | Shop at ECS Tuning | |||||

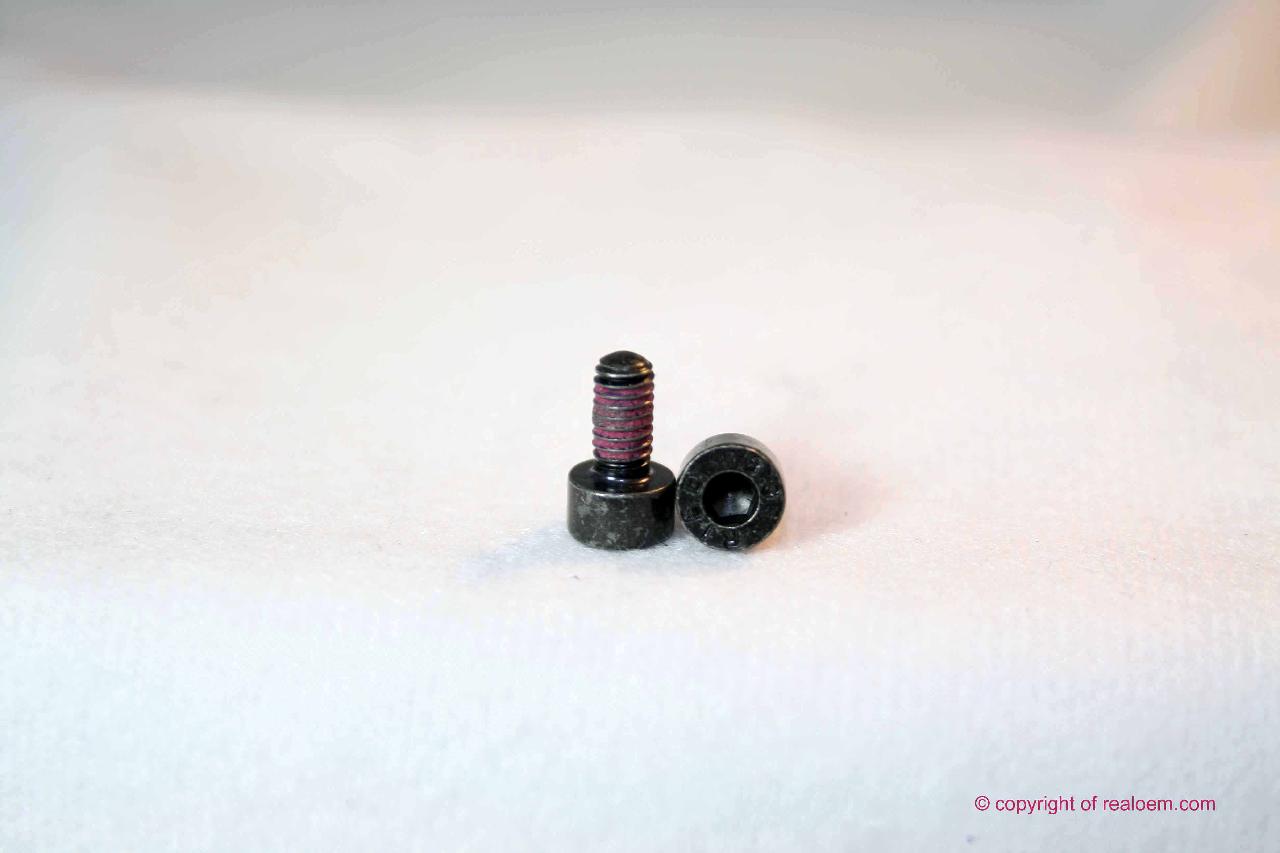

| 15 | Fillister-head screw | M4X8 | 1 | 25161215780 | $0.55 | Shop at ECS Tuning | ||||
| 16 | Dowel pin | 3X28 | 1 | 07119942160 | $0.15 | ENDED | Shop at ECS Tuning | |||
