Gearshift automatic transmission for BMW 6 Series E24 633CSi (1979)

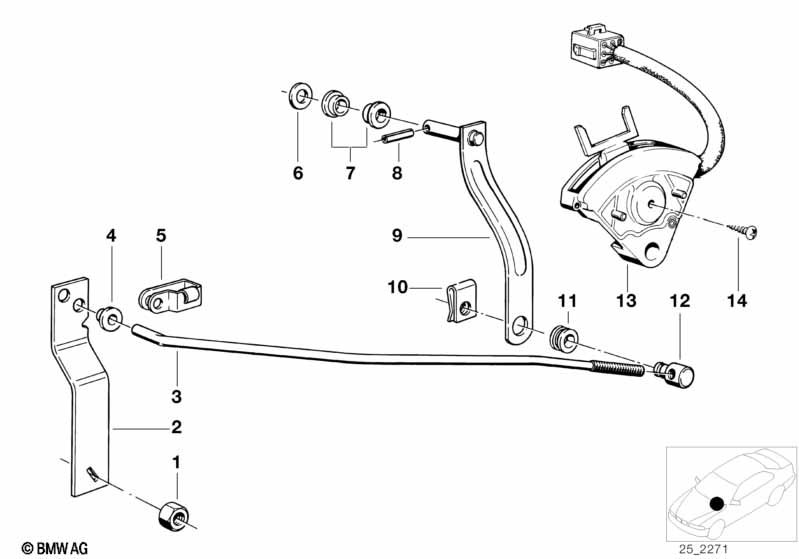

This Gearshift automatic transmission technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 3HP22 | |||||||||
| 01 | Self-locking hex nut | M8X1 | 1 | 09/1983 | 07129922770 | $0.24 | Shop at ECS Tuning | |||
| 02 | Selector lever | 1 | 09/1983 | 24511205672 | $18.48 | Shop at ECS Tuning | ||||
| 03 | Selector rod | 1 | 09/1983 | 25161204974 | $15.59 | ENDED | Shop at ECS Tuning | |||
| 04 | Bush | 1 | 09/1983 | 25161204945 | $0.92 | Shop at ECS Tuning | ||||
| 05 | Clip | 1 | 09/1983 | 25161208447 | $2.00 | ENDED | Shop at ECS Tuning | |||
| 06 | Shim | 18X25X1 | 1 | 09/1983 | 07119932650 | ENDED | Shop at ECS Tuning | |||
| 07 | Bushing | 2 | 09/1983 | 25161207838 | $1.04 | Shop at ECS Tuning | ||||
| 08 | Roll pin | 4X28 | 1 | 09/1983 | 07119941224 | ENDED | Shop at ECS Tuning | |||
| 09 | Shift lever-lower part | 1 | 09/1983 | 25161204774 | $29.80 | ENDED | Shop at ECS Tuning | |||
| 10 | Circlip | 1 | 09/1983 | 41621883598 | $0.77 | ENDED | Shop at ECS Tuning | |||
| 11 | Joint sleeve | 1 | 09/1983 | 25161207836 | $1.27 | Shop at ECS Tuning | ||||
| 12 | Pin | 1 | 09/1983 | 25161204883 | $6.62 | ENDED | Shop at ECS Tuning | |||
| 13 | Switch gearbox | 3HP22 | 1 | 09/1983 | 61311359778 | $89.84 | Shop at ECS Tuning | |||
| 14 | Fillister head self-tapping screw | ST4,8X19-Z1 | 1 | 09/1983 | 07119906765 | $0.56 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
