Gearshift automatic transmission for BMW 3 Series E30 325e (1988)

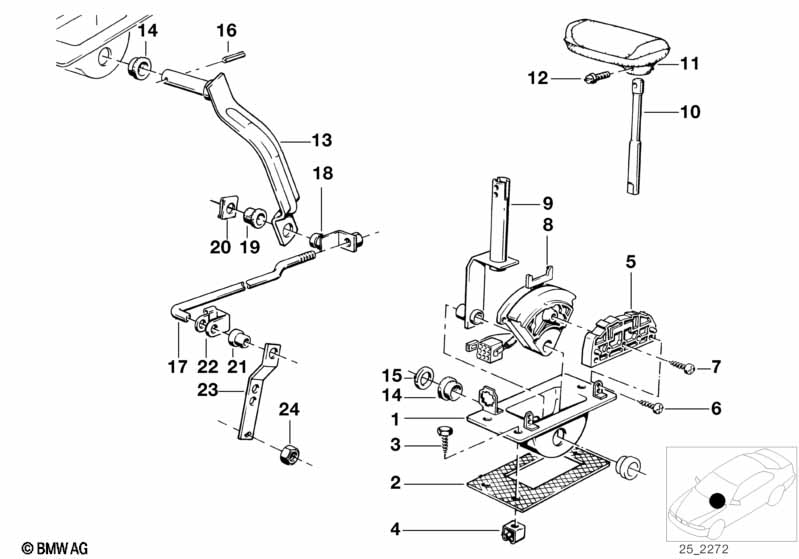

This Gearshift automatic transmission technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 4HP22 | |||||||||
| 01 | Supporting bracket | 1 | 25161215653 | $20.64 | ENDED | Shop at ECS Tuning | ||||
| 02 | Sound absorber | 1 | 25161218060 | $19.06 | +core | Shop at ECS Tuning | ||||
| 03 | Hex head screw | ST6,3X22-C-Z1 | 2 | 07119916969 | $0.29 | ENDED | Shop at ECS Tuning | |||
| 04 | Prestol-cage | ST6,3-ZNS | 2 | 07129901748 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 04 | Body nut | ST 6,3 - 9 | 2 | 07129904216 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Shifting gate | 1 | 25161215940 | $5.14 | Shop at ECS Tuning | |||||
| 06 | Fillister head self-tapping screw | ST4,8X19-Z1 | 2 | 07119906765 | $0.56 | Shop at ECS Tuning | ||||
| 07 | Fillister head self-tapping screw | ST4,8X19-Z1 | 1 | 07119906765 | $0.56 | Shop at ECS Tuning | ||||
| 08 | Switch gearbox | 1 | 25161215553 | $91.38 | Shop at ECS Tuning | |||||
| 09 | Shift lever-upper part | 1 | 25161215616 | $366.79 | ENDED | Shop at ECS Tuning | ||||
| 10 | Pull rod | 1 | 25161207558 | $2.41 | Shop at ECS Tuning | |||||
| 11 | Selector lever handle | 1 | 25161215200 | $51.62 | ENDED | Shop at ECS Tuning | ||||
| 11 | Plastic selector lever handle | SCHWARZ | 1 | 25161216905 | $22.75 | Shop at ECS Tuning | ||||
| 11 | Selector-lever grip, leather | SCHWARZ | 1 | 25161216464 | $233.95 | +core | Shop at ECS Tuning | |||
| 11 | Selector lever handle,wood nussb.-wurzel | HOCHGL./91 | 1 | 25161421590 | $171.95 | +core | Shop at ECS Tuning | |||
| 12 | Fillister-head screw | M4X8 | 1 | 25161215780 | $0.55 | Shop at ECS Tuning | ||||
| 13 | Shift lever-lower part | 1 | 25161215551 | $28.70 | Shop at ECS Tuning | |||||
| 14 | Bushing | 2 | 25161215534 | $1.54 | Shop at ECS Tuning | |||||
| 15 | Shim | 18X25X1 | 1 | 07119932650 | ENDED | Shop at ECS Tuning | ||||
| 16 | Roll pin | 4X28 | 1 | 07119941224 | ENDED | Shop at ECS Tuning | ||||
| 17 | Selector rod | 1 | 25161215984 | $16.00 | Shop at ECS Tuning | |||||
| 18 | Pin | 1 | 25161204883 | $6.62 | ENDED | Shop at ECS Tuning | ||||
| 19 | Joint sleeve | 1 | 25161207836 | $1.27 | Shop at ECS Tuning | |||||
| 20 | Circlip | 1 | 41621883598 | $0.77 | ENDED | Shop at ECS Tuning | ||||
| 21 | Bush | 1 | 25161204945 | $0.92 | Shop at ECS Tuning | |||||
| 22 | Clip | 1 | 25161208447 | $2.00 | ENDED | Shop at ECS Tuning | ||||
| 23 | Selector lever | 1 | 24511215168 | $9.25 | Shop at ECS Tuning | |||||
| 24 | Self-locking hex nut | M8X1 | 1 | 24517542700 | $0.27 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
