Gearshift manual transmission for BMW 7 Series E23 728i (1986)

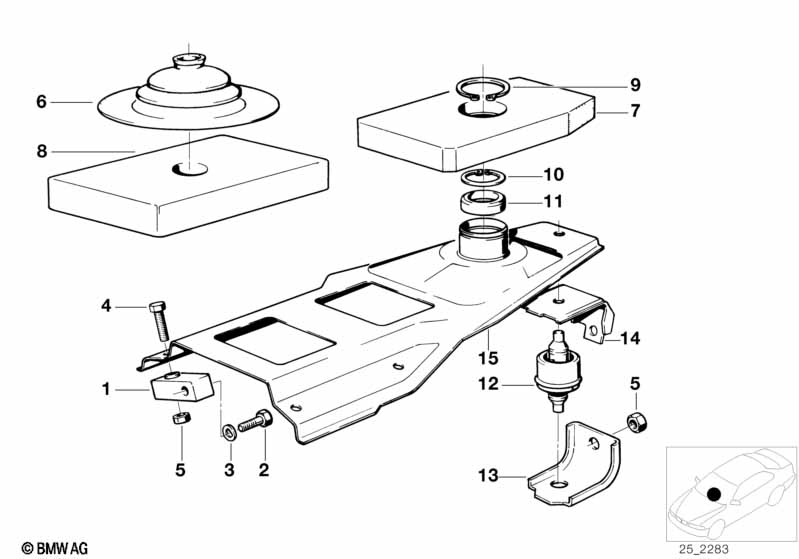

This Gearshift manual transmission technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Hex bolt | M8X40-ZNNIV SI | 2 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 03 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X35 | 2 | 07119913676 | $0.36 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728i Gearshift manual transmission?
- This technical diagram illustrates the Gearshift manual transmission within the Gearshift group for the 7 Series E23 728i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #07119905549).
- Which models use the hardware listed in this Gearshift manual transmission?
- The hardware and components featured in the Gearshift manual transmission are specific to the 7 Series E23 728i produced during 1986. These technical specifications ensure that parts like the Hex bolt (07119905549) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Gearshift manual transmission assembly?
- Each item in the Gearshift manual transmission corresponds to the numbered list below the illustration. For the 7 Series E23 728i, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 07119905549 for the Gearshift section.
