Gearshift manual transmission for BMW 3 Series E21 320i (1977)

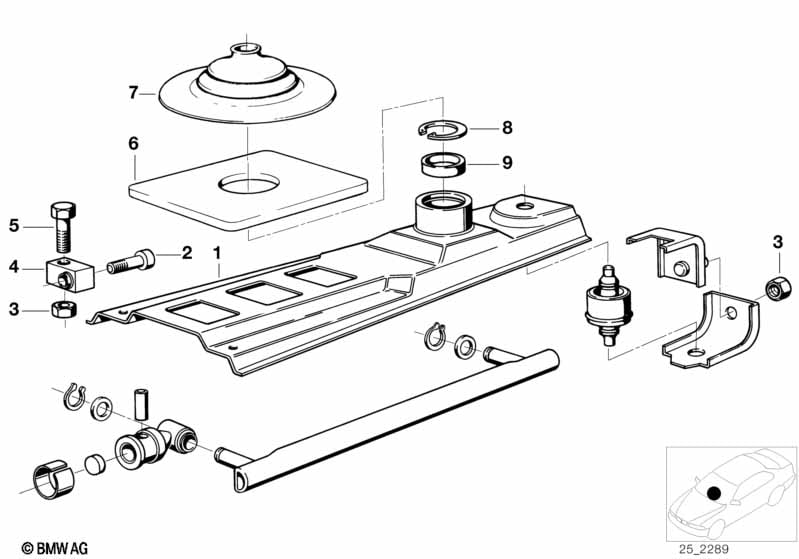

This Gearshift manual transmission technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shifting arm | 1 | 09/1979 | 25111204005 | $37.80 | ENDED | Shop at ECS Tuning | |||
| 02 | Fillister-head screw | M10X40 | 2 | 25111205659 | $1.15 | ENDED | Shop at ECS Tuning | |||
| 03 | Self-locking hex nut | M8-8-ZNNI SI | 3 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 04 | Supporting bracket | 2 | 25111208580 | $20.64 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M8X35 | 2 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Sound absorber | 1 | 09/1982 | 25111204001 | $11.78 | Shop at ECS Tuning | ||||
| 07 | Rubber boot | 1 | 25111220581 | $28.28 | Shop at ECS Tuning | |||||
| 08 | Lock Ring | 1 | 23411466112 | $0.68 | Shop at ECS Tuning | |||||
| 09 | Ball Cup lower | 1 | 25111207744 | $1.21 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
