Shift lever/cover for BMW 5 Series E12 520i (1976)

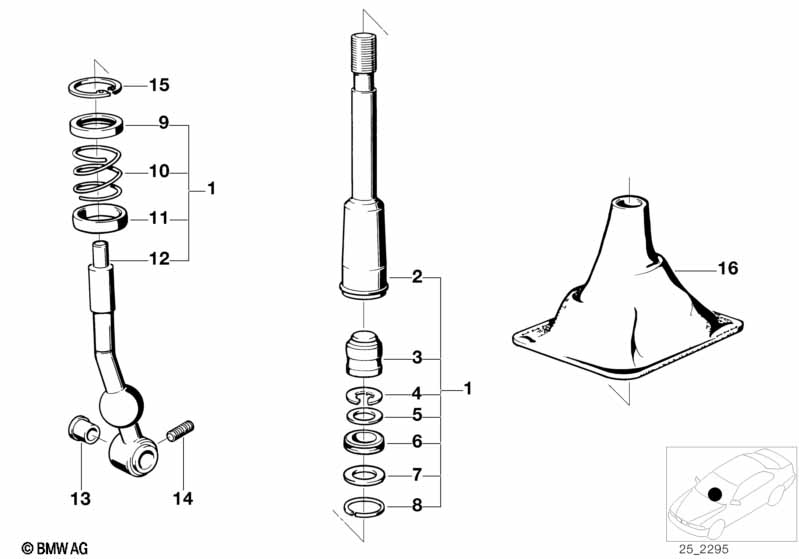

This Shift lever/cover technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Cap | 1 | 08/1977 | 25111205441 | $1.52 | Shop at ECS Tuning | ||||
| 04 | Circlip | 10-ZNS3 | 1 | 08/1977 | 07119904911 | $0.27 | Shop at ECS Tuning | |||
| 06 | Rubber Ring | 1 | 08/1977 | 23411666133 | $1.77 | Shop at ECS Tuning | ||||
| 07 | Washer | 14X25X2-ZNS3 | 1 | 08/1977 | 34301163613 | $0.83 | Shop at ECS Tuning | |||
| 08 | Spring washer | 1 | 08/1977 | 23411666122 | $1.75 | Shop at ECS Tuning | ||||
| 09 | Spacer sleeve | 1 | 08/1977 | 23411200844 | $2.27 | Shop at ECS Tuning | ||||
| 10 | Compression spring | 1 | 08/1977 | 23411200845 | $1.33 | Shop at ECS Tuning | ||||
| 11 | Ball Cup upper | 1 | 08/1977 | 23411466110 | $8.01 | Shop at ECS Tuning | ||||
| 12 | Shift lever-lower part | 1 | 08/1977 | 25111205870 | $64.36 | ENDED | Shop at ECS Tuning | |||
| 13 | Bush | 2 | 08/1977 | 23411466120 | $0.84 | Shop at ECS Tuning | ||||
| 14 | Grub screw | 1 | 08/1977 | 23411201536 | $2.32 | ENDED | Shop at ECS Tuning | |||
| 14 | Grub screw | 1 | 08/1977 | 25111203551 | Shop at ECS Tuning | |||||
| 15 | Lock Ring | 1 | 08/1977 | 23411466112 | $0.68 | Shop at ECS Tuning | ||||
| 16 | Imitation leather boot | 1 | 08/1977 | 25111208773 | $20.80 | ENDED | Shop at ECS Tuning | |||
| 16 | Leather boot | 1 | 08/1977 | 25111220000 | $36.85 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
