Gear shift knobs/shift lever coverings for BMW 3 Series E46 325i (2005)

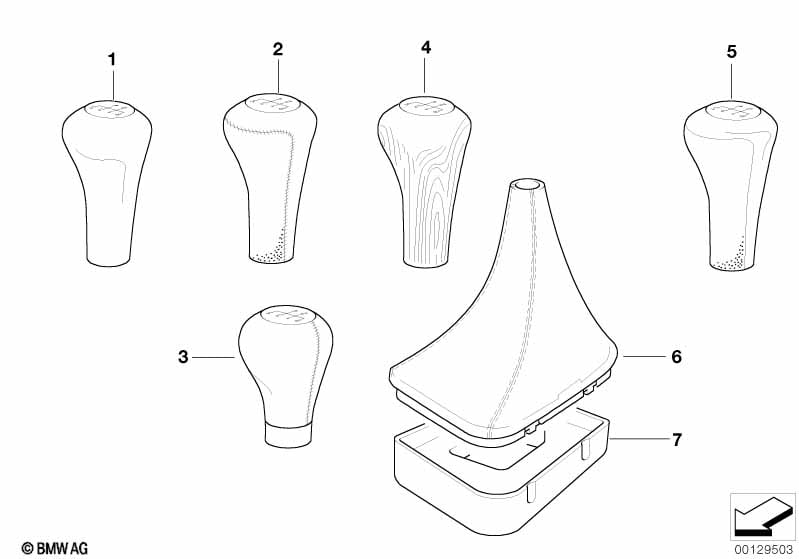

This Gear shift knobs/shift lever coverings technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gearshift knob, leather/5-speed | SCHWARZ | 1 | 12/2018 | 25111434609 | $77.28 | ENDED | Shop at ECS Tuning | ||
| 01 | Gearshift knob, leather/5-speed | SCHWARZ | 1 | 25117500299 | $72.59 | Shop at ECS Tuning | ||||
| 02 | Gearshift knob, leather/5-speed | SCHWARZ | 1 | 25117500299 | $72.59 | Shop at ECS Tuning | ||||
| Heavy version | ||||||||||
| 02 | Gearshift knob,leather/M plaque/5-speed | SCHWARZ | 1 | 25117503231 | $65.50 | ENDED | Shop at ECS Tuning | |||
| Heavy version | ||||||||||
| For vehicles with M Sports package II or Individual series "Clubsport" or Interior moldings Alu Silver Cube or Interior moldings Alu Black Cube |
S338A=Yes S768A=Yes S770A=Yes S772A=Yes |
|||||||||
| 03 | Gearshift knob,leather/M plaque/5-speed | SCHWARZ | 1 | 25117896031 | $80.50 | Shop at ECS Tuning | ||||
| Heavy version | ||||||||||
| 04 | Gear shift knob wood/5-speed | AHORN | 1 | 25111434716 | $104.95 | ENDED, +core | Shop at ECS Tuning | |||
| Heavy version | ||||||||||
| 04 | Gear shift knob wood/5-speed | MYRTE | 1 | 25111434497 | $105.17 | +core | Shop at ECS Tuning | |||
| Heavy version | ||||||||||
| 04 | Gear shift knob wood/5-speed | BIRKE | 1 | 25117512153 | $104.95 | ENDED, +core | Shop at ECS Tuning | |||
| Heavy version | ||||||||||
| 04 | Shift knob, wood, M plaque, 5-speed | AHORN | 1 | 25112282246 | $102.95 | ENDED, +core | Shop at ECS Tuning | |||
| Heavy version | ||||||||||
| 04 | Shift knob, wood, M plaque, 5-speed | MYRTE | 1 | 25112282248 | $104.95 | ENDED, +core | Shop at ECS Tuning | |||
| Heavy version | ||||||||||
| 04 | Shift knob, wood, M plaque, 5-speed | BIRKE | 1 | 25117832641 | $91.79 | ENDED, +core | Shop at ECS Tuning | |||
| Heavy version | ||||||||||
| 06 | Imitation leather gear lever cover | SCHWARZ | 1 | 25111434098 | $28.95 | Shop at ECS Tuning | ||||
| 06 | Imitation leather gear lever cover | HELLBEIGE | 1 | 25111434352 | $28.95 | Shop at ECS Tuning | ||||
| 06 | Gearshift lever knob/cover | TITANGRAU | 1 | 25111434531 | $28.95 | Shop at ECS Tuning | ||||
| 06 | Leather gear lever cover | SCHWARZ | 1 | 25111434426 | $83.23 | ENDED | Shop at ECS Tuning | |||
| 06 | Leather gear lever cover | HELLBEIGE | 1 | 25111434430 | $83.23 | ENDED | Shop at ECS Tuning | |||
| 06 | Leather gear lever cover | TITANGRAU | 1 | 25111434537 | $83.23 | ENDED | Shop at ECS Tuning | |||
| 07 | Insert shifter covering | 1 | 25111434100 | $11.20 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
