Autom.transmiss.steptronic shift parts for BMW 5 Series E39 520i (2001)

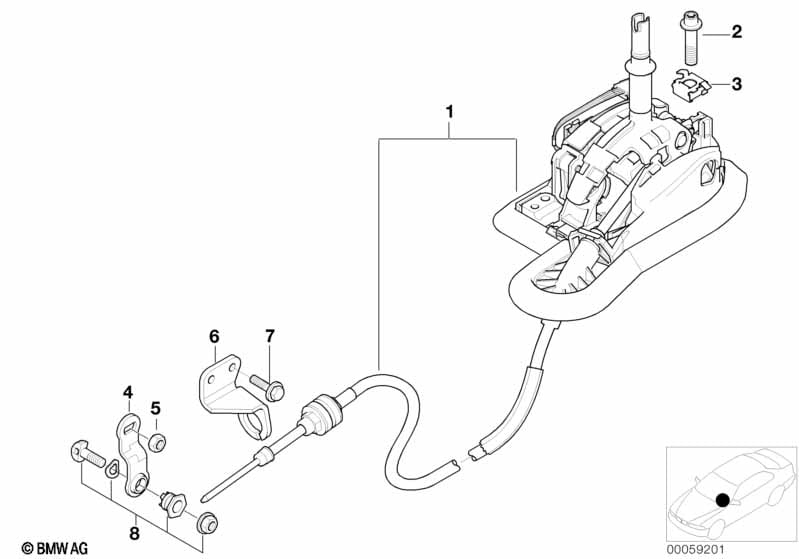

This Autom.transmiss.steptronic shift parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | INTERLOCK CABLE HG 32 ASSEMBLY COMPRISES STEPTRONIC SWITCH |
|||||||||
| No further intervention permitted | ||||||||||
| 01 | Gearshift Steptronic | 1 | 25161423984 | $469.08 | ENDED | Shop at ECS Tuning | ||||
| PLASTIC MATERIAL MOULDED PART black |
||||||||||
| 02 | Isa screw with washer | M6X35-8.8-ZNS3 | 3 | 25167571260 | $0.80 | Shop at ECS Tuning | ||||
| 03 | Blind rivet nut, flat headed | M6 ZNNIV SI | 3 | 12/1999 | 25167563407 | $0.39 | Shop at ECS Tuning | |||
| 04 | Selector lever | 1 | 24517570818 | $10.32 | +core | Shop at ECS Tuning | ||||
| 05 | Self-locking hex nut | M8X1 | 1 | 24517542700 | $0.27 | Shop at ECS Tuning | ||||
| 06 | Support bracket | ZF/GM | 1 | 24511422986 | $5.98 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Clamping parts set | 1 | 24500429180 | $18.95 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
