Gear shifting Steptronic, SMG for BMW 3 Series E46 M3 (2004)

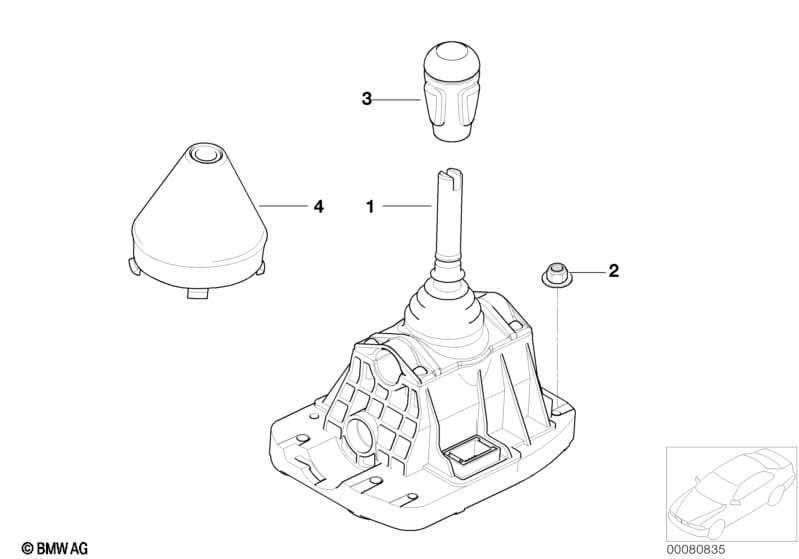

This Gear shifting Steptronic, SMG technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | chrome rings see main section 51, finisher oddments tray For vehicles with Sequential M transmission Drivelogic |
S793A=Yes |
||||||||
| No further intervention permitted | ||||||||||
| 01 | Gear shifting Steptronic, SMG | 1 | 03/2001 | 25122283852 | $469.08 | Shop at ECS Tuning | ||||
| 02 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 03/2001 | 07119905949 | $0.24 | Shop at ECS Tuning | |||
| 03 | Shift lever knob, leather, sequ M-trans. | SCHWARZ | 1 | 09/2003 | 25162282810 | $110.95 | Shop at ECS Tuning | |||
| Walknappa | ||||||||||
| 03 | Shift lever knob, leather, sequ M-trans. | SCHWARZ | 1 | 09/2003 | 25162282811 | $110.95 | Shop at ECS Tuning | |||
| Alcantara | ||||||||||
| 04 | Leather gear lever cover | SMG | 1 | 03/2001 | 25167904014 | $83.43 | +core | Shop at ECS Tuning | ||
Notes
- +core = plus core charge (possibility of a return of the old part)
