Gear shifting Steptronic, SMG for BMW 3 Series E46 325i (2004)

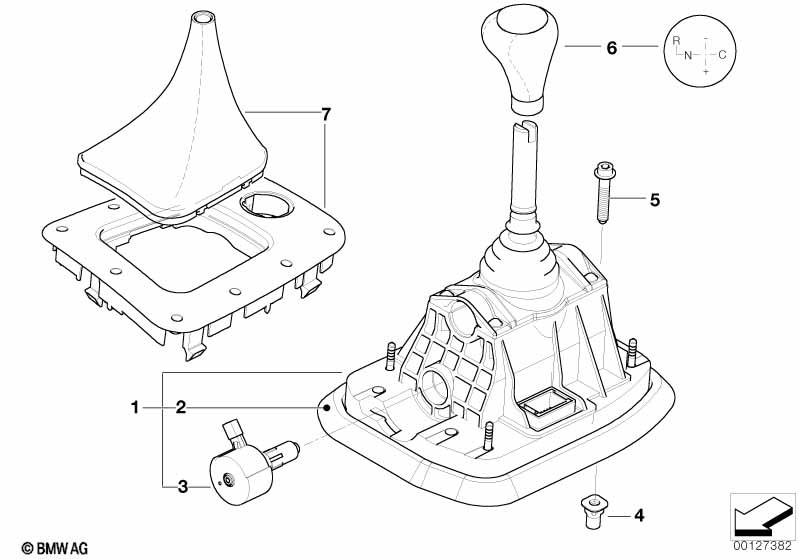

This Gear shifting Steptronic, SMG technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sequential manual transmission (SMG) |
S206A=Yes |
||||||||
| 01 | Gear shifting Steptronic, SMG | 1 | 25127507080 | $469.08 | Shop at ECS Tuning | |||||
| 02 | Sealing frame | SMG | 1 | 25127507017 | $24.24 | Shop at ECS Tuning | ||||
| 03 | Magnet | SMG/SHIFTLOCK | 1 | 25127507036 | $140.22 | Shop at ECS Tuning | ||||
| 04 | Blind rivet nut, flat headed | M6 ZNNIV SI | 1 | 25167563407 | $0.39 | Shop at ECS Tuning | ||||
| 05 | Isa screw with washer | M6X35-8.8-ZNS3 | 1 | 25167571260 | $0.80 | Shop at ECS Tuning | ||||
| 06 | Shift knob, leather, black/SMG | RUTHENIUMGRAU | 1 | 03/2003 | 25127525053 | $110.95 | Shop at ECS Tuning | |||
| 06 | Shift lever knob, wood, sequ M-transmiss | MYRTE | 1 | 03/2003 | 25127525044 | $136.95 | ENDED | Shop at ECS Tuning | ||
| 06 | Shift lever knob, wood, sequ M-transmiss | BIRKE | 1 | 03/2003 | 25127525045 | $33.00 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Leather gear lever cover | SMG/SCHWARZ | 1 | 03/2003 | 25127507082 | $99.87 | Shop at ECS Tuning | |||
| WITHOUT FRAME SECTION |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
