Gear shifting,mech.transm./diesel for BMW 3 Series E46 330d (2005)

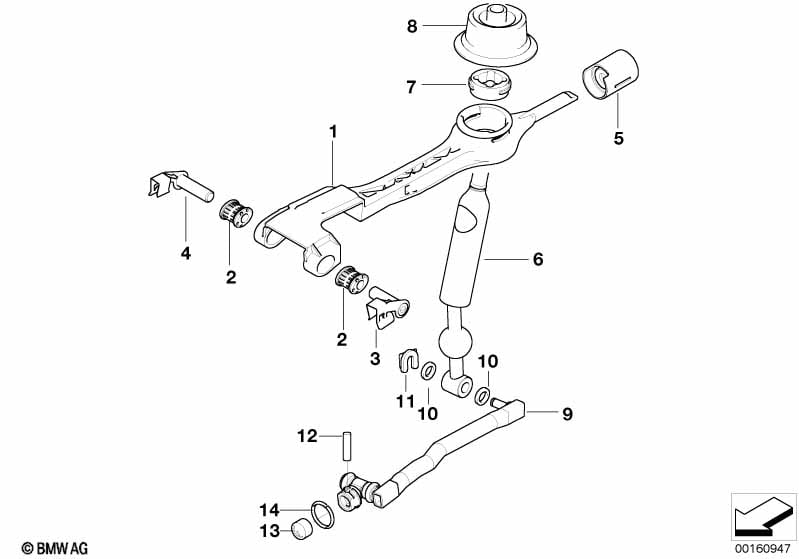

This Gear shifting,mech.transm./diesel technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shifting arm, reinforced | 1 | 25117522377 | Shop at ECS Tuning | ||||||
| 02 | Bush bearing oval | L=26MM/SCHWARZ | 2 | 25117507695 | $2.93 | Shop at ECS Tuning | ||||
| 03 | Bolt | 1 | 09/2003 | 25117529079 | $5.23 | Shop at ECS Tuning | ||||
| 04 | Bolt | 1 | 09/2003 | 25117529078 | $5.23 | Shop at ECS Tuning | ||||
| 05 | Bearing, shifting arm | 1 | 25111222015 | $17.40 | Shop at ECS Tuning | |||||
| Bracket f shifting arm bearing HG 41 |
||||||||||
| 06 | Shift lever | 1 | 25117527259 | $66.20 | Shop at ECS Tuning | |||||
| 07 | Bearing, shift lever | 1 | 25111220600 | $10.33 | Shop at ECS Tuning | |||||
| 08 | Rubber boot | 1 | 25117522149 | $17.48 | Shop at ECS Tuning | |||||
| 09 | Selector rod with joint | 1 | 25117528395 | Shop at ECS Tuning | ||||||
| 11 | Securing clip | 1 | 25117571899 | $0.66 | Shop at ECS Tuning | |||||
| 12 | Dowel pin | 1 | 23411466134 | $0.70 | Shop at ECS Tuning | |||||
| 13 | Plastic washer | 1 | 25111434194 | $0.85 | Shop at ECS Tuning | |||||
| 14 | Lock Ring | 1 | 25111222451 | $0.33 | Shop at ECS Tuning | |||||
