Gear shift knobs/shift lever coverings for BMW 5 Series E60 523i (2005)

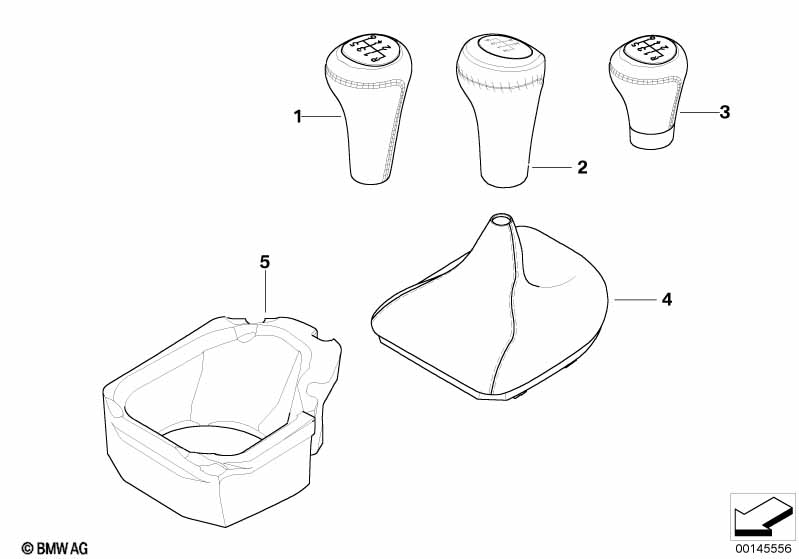

This Gear shift knobs/shift lever coverings technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission and Sequential manual transmission (SMG) and M double-clutch transmiss. w/Drivelogic and Sport automatic transmission |
S205A=No S206A=No S2MKA=No S2TBA=No |
||||||||
| 01 | Leather shift knob/6-speed/clasp angular | PERLGLANZ CHROM | 1 | 25117566267 | $82.97 | ENDED | Shop at ECS Tuning | |||
| For vehicles with M leather steering wheel |
S710A=Yes |
|||||||||
| 01 | Gearshift knob,leather/M plaque/6-speed | SCHWARZ | 1 | 09/2004 | 25117896884 | $68.00 | Shop at ECS Tuning | |||
| 02 | Leather shift knob/6-speed/clasp angular | RUTHENIUM | 1 | 03/2005 | 25117550685 | $87.79 | ENDED | Shop at ECS Tuning | ||
| only applies to Retrofit decor strip, titan. II, dark |
||||||||||
| 02 | Leather shift knob/6-speed/clasp angular | TITAN II DUNKEL | 1 | 25117531311 | $66.96 | ENDED | Shop at ECS Tuning | |||
| see Image Text Unit HG 51 |
||||||||||
| For vehicles with M Sports package |
P337A=Yes |
|||||||||
| 03 | Gearshift knob,leather/M plaque/6-speed | SCHWARZ | 1 | 09/2004 | 25117896886 | $79.00 | Shop at ECS Tuning | |||
| 04 | Leather gear lever cover | SCHWARZ | 1 | 03/2005 | 25117552512 | +core | Shop at ECS Tuning | |||
| 04 | Leather gear lever cover | GRAU | 1 | 03/2005 | 25117552514 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Leather gear lever cover | BRAUN | 1 | 03/2005 | 25117552515 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Insert shifter covering | 1 | 25117526428 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
