Gear shifting Steptronic, SMG for BMW 5 Series E61 525i (2005)

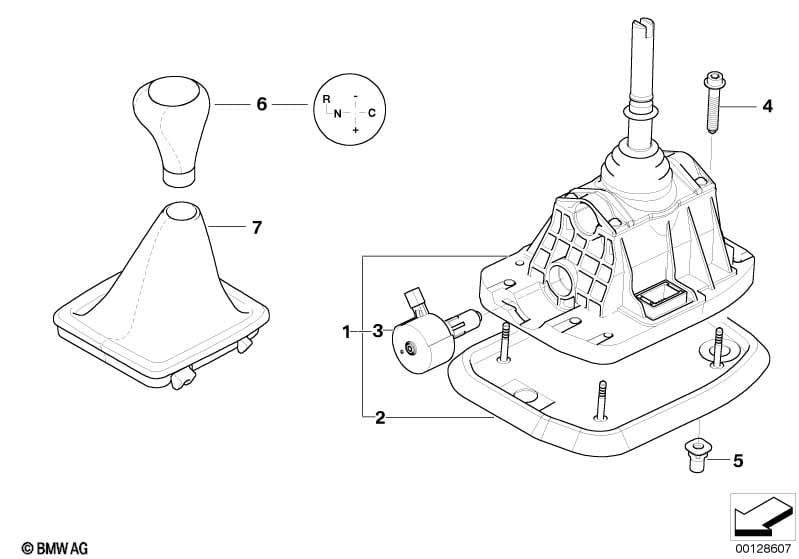

This Gear shifting Steptronic, SMG technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sequential manual transmission (SMG) |
S206A=Yes |
||||||||
| 01 | Gear shifting Steptronic, SMG | 1 | 25127507080 | $469.08 | Shop at ECS Tuning | |||||
| No further intervention permitted | ||||||||||
| 02 | Sealing frame | SMG | 1 | 25127507017 | $24.24 | Shop at ECS Tuning | ||||
| 03 | Magnet | SMG/SHIFTLOCK | 1 | 25127507036 | $140.22 | Shop at ECS Tuning | ||||
| PIN TERMINAL HG 61 |
||||||||||
| 04 | Isa screw with washer | M6X35-8.8-ZNS3 | 3 | 25167571260 | $0.80 | Shop at ECS Tuning | ||||
| 05 | Blind rivet nut, flat headed | M6 ZNNIV SI | 3 | 25167563407 | $0.39 | Shop at ECS Tuning | ||||
| 06 | Shift knob, leather, black/SMG | RUTHENIUMGRAU | 1 | 25127525053 | $110.95 | Shop at ECS Tuning | ||||
| 07 | Gear lever cover | SMG/SCHWARZ | 1 | 25127507165 | $83.43 | ENDED | Shop at ECS Tuning | |||
| Cover, gear selecting lever SMG HG 51 |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
