Gear shifting,mech.transm./diesel for BMW 5 Series E61 520d (2007)

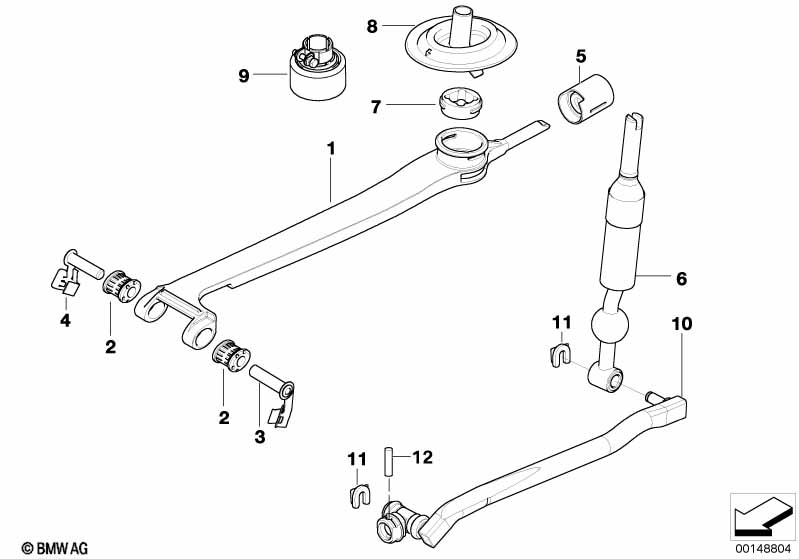

This Gear shifting,mech.transm./diesel technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=No |
||||||||
| 01 | Shifting arm | 1 | 02/2007 | 25117573123 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Bearing sleeve, ultra-oval | L=21MM | 2 | 02/2007 | 25117528407 | $2.67 | Shop at ECS Tuning | |||
| 03 | Bolt | 1 | 25117529078 | $5.23 | Shop at ECS Tuning | |||||
| 04 | Bolt | 1 | 25117529079 | $5.23 | Shop at ECS Tuning | |||||
| 05 | Bearing, shifting arm | 1 | 25111222015 | $17.40 | Shop at ECS Tuning | |||||
| 06 | Shift lever, short | 1 | 25117546373 | $72.63 | Shop at ECS Tuning | |||||
| 07 | Bearing, shift lever | 1 | 25111220600 | $10.33 | Shop at ECS Tuning | |||||
| 08 | Rubber boot | 1 | 25117519775 | $17.48 | Shop at ECS Tuning | |||||
| 09 | Vibration absorber | F=28 HZ | 1 | 25117558855 | Shop at ECS Tuning | |||||
| 10 | Selector rod with joint | 1 | 25117559337 | ENDED, +core | Shop at ECS Tuning | |||||
| 11 | Securing clip | 2 | 25117571899 | $0.66 | Shop at ECS Tuning | |||||
| 12 | Dowel pin | 1 | 23411466134 | $0.70 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
