Autom.transmiss.steptronic shift parts for BMW 1 Series E82 118d (2013)

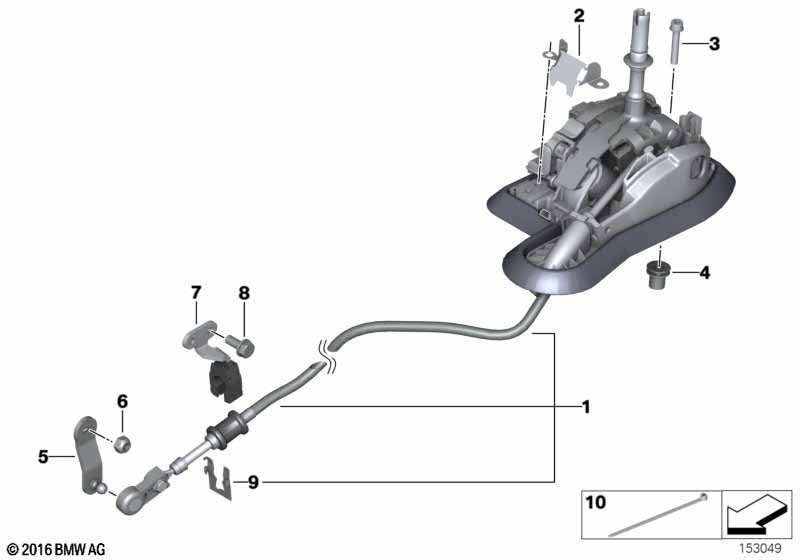

This Autom.transmiss.steptronic shift parts technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | INTERLOCK CABLE HG 32 ASSEMBLY COMPRISES STEPTRONIC SWITCH For vehicles with Automatic transmission |
S205A=Yes |
||||||||
| 01 | Gearshift Steptronic | 1 | 25167577600 | Shop at ECS Tuning | ||||||
| No further intervention permitted | ||||||||||
| 03 | Isa screw with washer | M6X35-8.8-ZNS3 | 3 | 25167571260 | $0.80 | Shop at ECS Tuning | ||||
| 04 | Blind rivet nut, flat headed | M6 ZNNIV SI | 3 | 25167563407 | $0.39 | Shop at ECS Tuning | ||||
| 05 | Selector lever | 1 | 25167560347 | $11.21 | Shop at ECS Tuning | |||||
| 06 | Self-locking hex nut | M8X1 | 1 | 24517542700 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Support noise absorbing | 1 | 24517548359 | $21.81 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Securing plate | 1 | 25161421252 | $0.75 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E82 118d Autom.transmiss.steptronic shift parts?
- This technical diagram illustrates the Autom.transmiss.steptronic shift parts within the Gearshift group for the 1 Series E82 118d produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Gearshift Steptronic (Part #25167577600).
- Which models use the hardware listed in this Autom.transmiss.steptronic shift parts?
- The hardware and components featured in the Autom.transmiss.steptronic shift parts are specific to the 1 Series E82 118d produced during 2013. These technical specifications ensure that parts like the Gearshift Steptronic (25167577600) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Autom.transmiss.steptronic shift parts assembly?
- Each item in the Autom.transmiss.steptronic shift parts corresponds to the numbered list below the illustration. For the 1 Series E82 118d, you can identify the Gearshift Steptronic by locating its position on the schematic, which then links to the official BMW part number 25167577600 for the Gearshift section.
