Gear selector switch for BMW 5 Series E61 LCI M5 (2010)

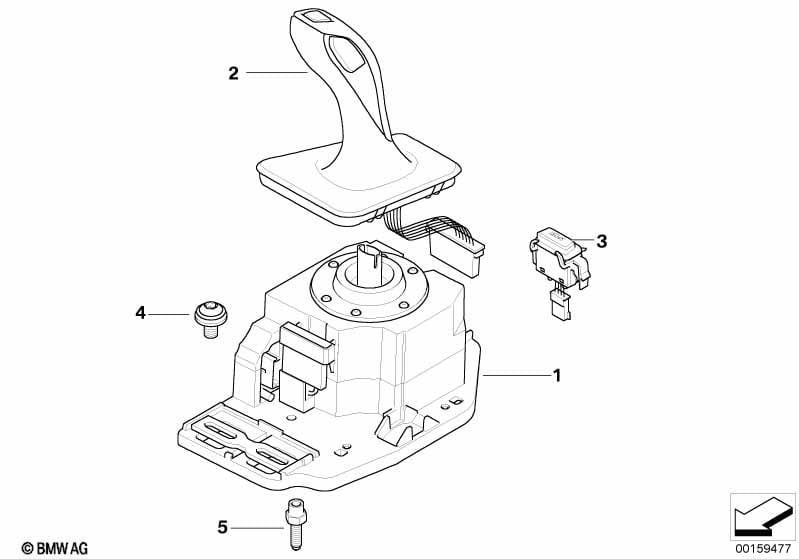

This Gear selector switch technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sport automatic transmission |
S2TBA=Yes |
||||||||
| 01 | Shift box, gear selection switch | 1 | 03/2009 | 61319213650 | $363.27 | Shop at ECS Tuning | ||||
| 02 | Selector lever handle | 1 | 61319208271 | $198.03 | Shop at ECS Tuning | |||||
| 03 | Sport switch | 1 | 61319142869 | $73.75 | Shop at ECS Tuning | |||||
| 04 | Oval-head screw with washer | M6X18-10.9 | 3 | 07149165860 | $0.71 | Shop at ECS Tuning | ||||
| 05 | Spacer pin | 1 | 07149110285 | $1.54 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 LCI M5 Gear selector switch?
- This technical diagram illustrates the Gear selector switch within the Gearshift group for the 5 Series E61 LCI M5 produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Shift box, gear selection switch (Part #61319213650).
- Which models use the hardware listed in this Gear selector switch?
- The hardware and components featured in the Gear selector switch are specific to the 5 Series E61 LCI M5 produced during 2010. These technical specifications ensure that parts like the Shift box, gear selection switch (61319213650) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Gear selector switch assembly?
- Each item in the Gear selector switch corresponds to the numbered list below the illustration. For the 5 Series E61 LCI M5, you can identify the Shift box, gear selection switch by locating its position on the schematic, which then links to the official BMW part number 61319213650 for the Gearshift section.
