Gearshift manual transmission for BMW 3 Series E36 M3 (1998)

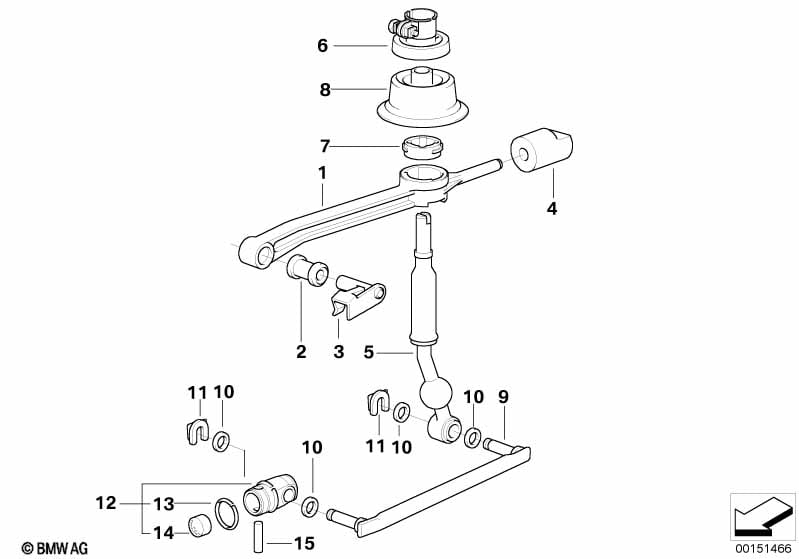

This Gearshift manual transmission technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shifting arm, cranked | 1 | 25111221864 | $19.87 | Shop at ECS Tuning | |||||
| 02 | Bush bearing oval | L=26MM/SCHWARZ | 1 | 25117507695 | $2.93 | Shop at ECS Tuning | ||||
| 03 | Bolt | D=10MMX40MM | 1 | 25111221849 | $4.97 | Shop at ECS Tuning | ||||
| 04 | Bearing, shifting arm | 1 | 25111222015 | $17.40 | Shop at ECS Tuning | |||||
| Bracket f shifting arm bearing HG 41 |
||||||||||
| 05 | Shift lever | 1 | 25117527247 | $72.23 | Shop at ECS Tuning | |||||
| Plastic washer unnecessary |
||||||||||
| 07 | Bearing, shift lever | 1 | 25111220600 | $10.33 | Shop at ECS Tuning | |||||
| 08 | Rubber boot | 1 | 25111221700 | $18.08 | Shop at ECS Tuning | |||||
| 09 | Selector rod | 1 | 25111222738 | $35.95 | Shop at ECS Tuning | |||||
| 11 | Securing clip | 2 | 25117571899 | $0.66 | Shop at ECS Tuning | |||||
| without 2 plastic washers 1 220 439 | ||||||||||
| 12 | Gearshift rod joint | 1 | 25117580281 | $15.10 | Shop at ECS Tuning | |||||
| 13 | Lock Ring | 1 | 25111222451 | $0.33 | Shop at ECS Tuning | |||||
| 14 | Plastic washer | 1 | 25111434194 | $0.85 | Shop at ECS Tuning | |||||
| 15 | Dowel pin | 1 | 23411466134 | $0.70 | Shop at ECS Tuning | |||||
