Gearshift knobs/coverings/plaques for BMW 3 Series E36 320i (1995)

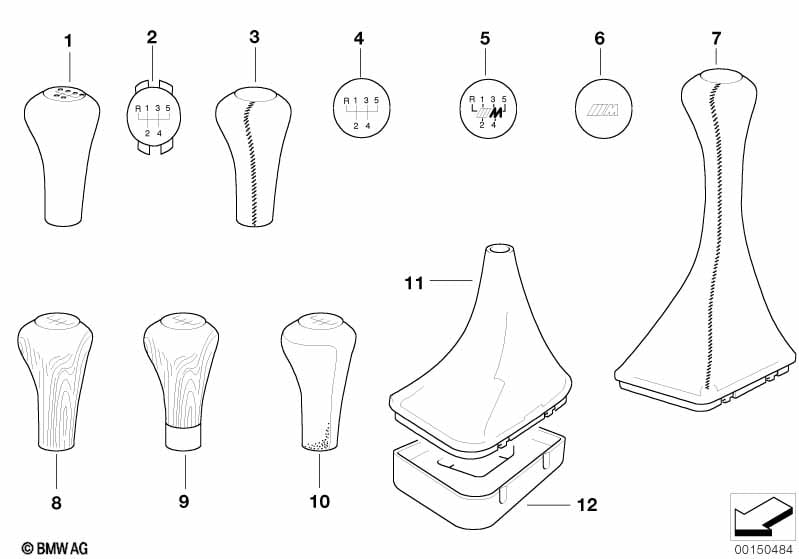

This Gearshift knobs/coverings/plaques technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gear shift knob plastic/5-speed | SCHWARZ | 1 | 09/1998 | 25111434495 | $24.50 | ENDED | Shop at ECS Tuning | ||
| 01 | Gearshift knob, leather/5-speed | SCHWARZ | 1 | 25117500299 | $72.59 | Shop at ECS Tuning | ||||
| 02 | Emblem plugged in | 1 | 25111222282 | $7.48 | Shop at ECS Tuning | |||||
| 03 | Leather shifting knob without emblem | SCHWARZ | 1 | 25111221284 | $55.50 | Shop at ECS Tuning | ||||
| 04 | Emblem adhered | 5-GANG/SCHWARZ | 1 | 25111221611 | $10.73 | Shop at ECS Tuning | ||||
| 05 | Emblem adhered | 5-GANG/M. | 1 | 25111221613 | $13.75 | Shop at ECS Tuning | ||||
| For vehicles with Fine wood trim Only applies to wood trim SA 438 |
S438A=Yes |
|||||||||
| 08 | Shifting knob, wood nussbaum-wurzel | HOCHGLANZ 91 | 1 | 25111222702 | $94.86 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Shifting knob, wood nussbaum-wurzel | M-TECHNIC 91 | 1 | 25112267885 | $93.50 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Chrome-Line/SA345 and Wooden trim SA438 |
=Yes =Yes |
|||||||||
| 09 | Shift knob wood, chrome ring | NUSSBAUM/91 | 1 | 25112492467 | $102.95 | ENDED | Shop at ECS Tuning | |||
| 09 | Shift knob wood, chrome ring | NUSSBAUM/93 | 1 | 25112492469 | $102.95 | ENDED | Shop at ECS Tuning | |||
| 09 | Shift knob wood/chrome ring/M plaque | NUSSBAUM/91 | 1 | 25112492468 | $102.95 | ENDED | Shop at ECS Tuning | |||
| 09 | Shift knob wood/chrome ring/M plaque | NUSSBAUM/93 | 1 | 25112492470 | $102.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Chrome Line Interieur |
S345A=Yes |
|||||||||
| 10 | Gearshift knob,leather/M plaque/5-speed | CHROM GLÄNZEND | 1 | 25112492481 | $73.50 | ENDED | Shop at ECS Tuning | |||
| 10 | Gearshift knob, leather/5-speed | SCHWARZ | 1 | 25117500299 | $72.59 | Shop at ECS Tuning | ||||
| 11 | Imitation leather gear lever cover | SCHWARZ | 1 | 25111221666 | $31.40 | Shop at ECS Tuning | ||||
| 11 | Leather boot walk-nappa | SCHWARZ | 1 | 25111434324 | $74.53 | +core | Shop at ECS Tuning | |||
| 12 | Insert shifter covering | 1 | 25111222170 | $11.20 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 320i Gearshift knobs/coverings/plaques?
- This technical diagram illustrates the Gearshift knobs/coverings/plaques within the Gearshift group for the 3 Series E36 320i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Gear shift knob plastic/5-speed (Part #25111434495).
- Which models use the hardware listed in this Gearshift knobs/coverings/plaques?
- The hardware and components featured in the Gearshift knobs/coverings/plaques are specific to the 3 Series E36 320i produced during 1995. These technical specifications ensure that parts like the Gear shift knob plastic/5-speed (25111434495) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Gearshift knobs/coverings/plaques assembly?
- Each item in the Gearshift knobs/coverings/plaques corresponds to the numbered list below the illustration. For the 3 Series E36 320i, you can identify the Gear shift knob plastic/5-speed by locating its position on the schematic, which then links to the official BMW part number 25111434495 for the Gearshift section.
