Shift interlock automatic transm. for BMW 3 Series E36 325tds (1999)

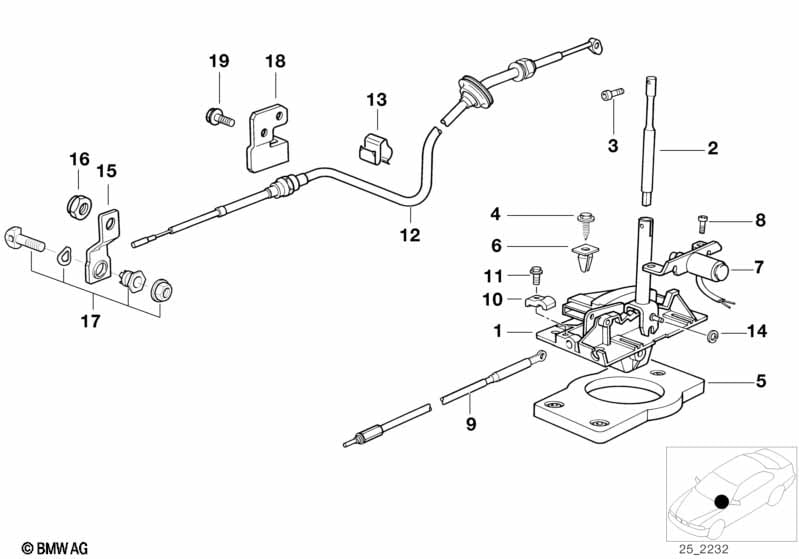

This Shift interlock automatic transm. technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gear shift lug | INTERLOCK | 1 | 09/1996 | 25161422824 | $128.03 | Shop at ECS Tuning | |||
| No further intervention permitted | ||||||||||
| 02 | Spacer tube | L=55,5MM | 1 | 09/1996 | 25161422826 | $1.75 | Shop at ECS Tuning | |||
| 04 | Hex head screw | ST6,3X38-C-Z1 | 3 | 09/1996 | 07119916977 | $0.47 | Shop at ECS Tuning | |||
| 05 | Sound insulation | 1 | 09/1996 | 25161421130 | $17.48 | Shop at ECS Tuning | ||||
| 06 | Prestol-cage | ST6,3-ZNS | 3 | 09/1996 | 07129901748 | $0.25 | ENDED | Shop at ECS Tuning | ||
| 06 | Body nut | ST 6,3 - 9 | 3 | 09/1996 | 07129904216 | $0.25 | Shop at ECS Tuning | |||
| 07 | Magnet | 1 | 09/1996 | 25161219599 | $55.24 | Shop at ECS Tuning | ||||
| 08 | Fillister-head screw | M6X14 | 2 | 09/1996 | 07119906475 | $1.54 | Shop at ECS Tuning | |||
| 09 | Interlock cable | RHD | 1 | 09/1996 | 32311092822 | Shop at ECS Tuning | ||||
| 10 | Interlock cable bracket | 1 | 09/1996 | 32311160323 | $2.70 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M6 | 1 | 09/1996 | 32311160657 | $0.83 | Shop at ECS Tuning | |||
| 12 | Cable noise absorbing | ZF | 1 | 09/1996 | 25161423396 | ENDED, +core | Shop at ECS Tuning | |||
| 13 | Holder | 1 | 09/1996 | 11157545772 | $1.04 | Shop at ECS Tuning | ||||
| 13 | Holder | 1 | 09/1996 | 11157545772 | $1.04 | Shop at ECS Tuning | ||||
| 14 | Circlip | 1 | 09/1996 | 25161421439 | $0.30 | Shop at ECS Tuning | ||||
| 15 | Selector lever | ZF | 1 | 09/1996 | 24511218678 | $10.32 | Shop at ECS Tuning | |||
| 16 | Self-locking hex nut | M14X1,5 05 ZNS3 | 1 | 09/1996 | 31106769443 | $1.35 | Shop at ECS Tuning | |||
| 17 | Clamping parts set | 1 | 09/1996 | 24500429180 | $18.95 | Shop at ECS Tuning | ||||
| 18 | Support bracket | ZF | 1 | 09/1996 | 24511422386 | $5.98 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
