Drive shaft-cent.bearing-universal joint for BMW 5 Series E12 528 (1977)

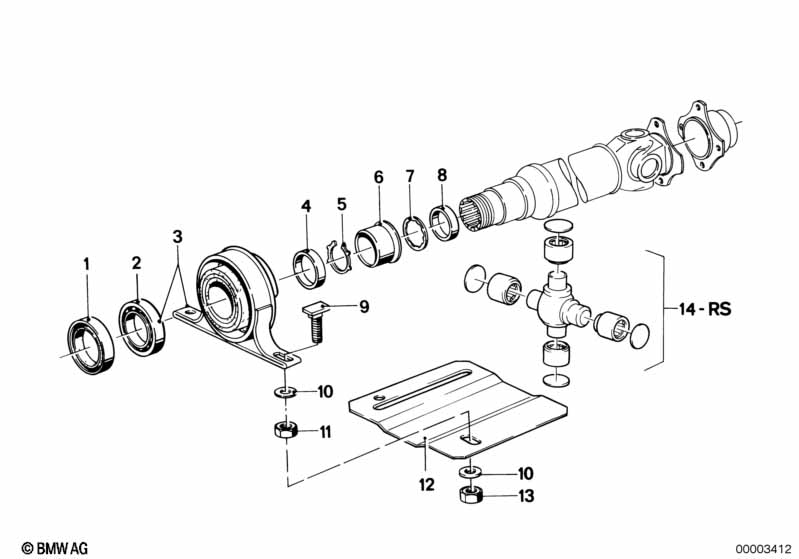

This Drive shaft-cent.bearing-universal joint technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dust protection | 1 | 26113748138 | $1.59 | Shop at ECS Tuning | |||||
| 02 | Grooved ball bearing | D=55/D=30 | 1 | 26121225071 | $26.16 | Shop at ECS Tuning | ||||
| 03 | Center Mount | 1 | 26111206502 | $125.71 | Shop at ECS Tuning | |||||
| 03 | Center Mount | 1 | 26121209532 | $101.33 | Shop at ECS Tuning | |||||
| 04 | Dust protection | 1 | 26121100992 | $2.48 | Shop at ECS Tuning | |||||
| 05 | Lock Ring | 1 | 26123648156 | $0.98 | Shop at ECS Tuning | |||||
| 06 | Threaded ring with clamp-ring | 1 | 26117514037 | $12.52 | Shop at ECS Tuning | |||||
| 07 | Tooth washer | 1 | 26111100692 | $0.55 | Shop at ECS Tuning | |||||
| 08 | Clamp ring | 1 | 26111207480 | $5.27 | ENDED | Shop at ECS Tuning | ||||
| 09 | Square headed bolt | M8X18 | 2 | 23711130250 | $4.27 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and Sweden version |
L810A=Yes =Yes |
|||||||||
| 10 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 11 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 14 | Repair kit swivcl joint | 2 | 26117518304 | $76.12 | Shop at ECS Tuning | |||||
