Drive shaft attach.parts center bearing for BMW 6 Series E24 635CSi (1989)

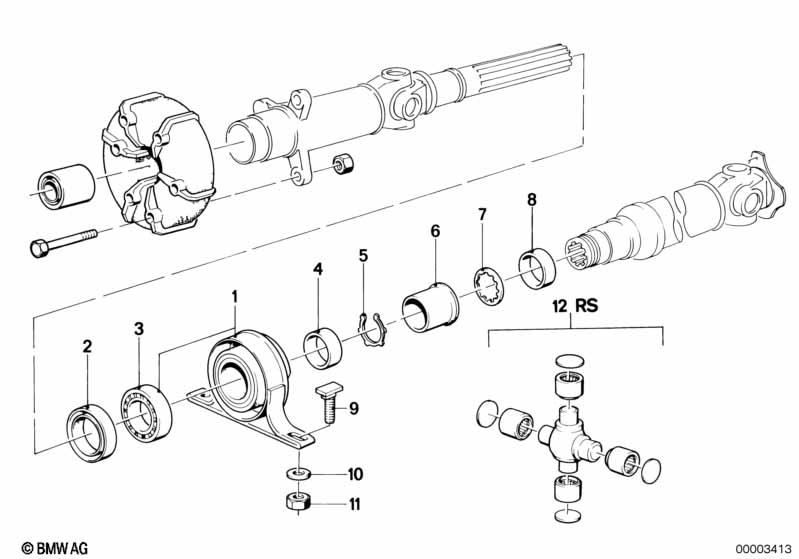

This Drive shaft attach.parts center bearing technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Center Mount | 1 | 05/1982 | 26121209532 | $101.33 | Shop at ECS Tuning | ||||
| 01 | Center Mount | 1 | 05/1982 | 26121209532 | $101.33 | Shop at ECS Tuning | ||||
| 01 | Center Mount | 55X30 | 1 | 05/1982 | 26121226628 | $129.47 | Shop at ECS Tuning | |||
| 01 | Center Mount | 55X30 | 1 | 05/1982 | 26121226628 | $129.47 | Shop at ECS Tuning | |||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 01 | Center Mount | 1 | 05/1982 | 26121209532 | $101.33 | Shop at ECS Tuning | ||||
| 01 | Center Mount | 1 | 05/1982 | 26121209532 | $101.33 | Shop at ECS Tuning | ||||
| 02 | Dust protection | 1 | 26113748138 | $1.59 | Shop at ECS Tuning | |||||
| 03 | Grooved ball bearing | D=55/D=30 | 1 | 26121225071 | $26.16 | Shop at ECS Tuning | ||||
| 04 | Dust protection | 1 | 26121100992 | $2.48 | Shop at ECS Tuning | |||||
| 05 | Lock Ring | 1 | 26123648156 | $0.98 | Shop at ECS Tuning | |||||
| 06 | Threaded ring with clamp-ring | 1 | 26117514037 | $12.52 | Shop at ECS Tuning | |||||
| 07 | Tooth washer | 1 | 05/1982 | 26111209285 | $2.73 | Shop at ECS Tuning | ||||
| 07 | Tooth washer | 1 | 05/1982 | 26111209285 | $2.73 | Shop at ECS Tuning | ||||
| 08 | Threaded ring with clamp-ring | 1 | 05/1982 | 26117514037 | $12.52 | Shop at ECS Tuning | ||||
| 08 | Threaded ring with clamp-ring | 1 | 05/1982 | 26117514037 | $12.52 | Shop at ECS Tuning | ||||
| 09 | Square headed bolt | M8X21 | 2 | 05/1982 | 23711175689 | $0.91 | Shop at ECS Tuning | |||
| 09 | Square headed bolt | M8X21 | 2 | 05/1982 | 23711175689 | $0.91 | Shop at ECS Tuning | |||
| 10 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 11 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 12 | Repair kit swivcl joint | 2 | 26117518304 | $76.12 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 635CSi Drive shaft attach.parts center bearing?
- This technical diagram illustrates the Drive shaft attach.parts center bearing within the Drive Shaft group for the 6 Series E24 635CSi produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Center Mount (Part #26121209532).
- Which models use the hardware listed in this Drive shaft attach.parts center bearing?
- The hardware and components featured in the Drive shaft attach.parts center bearing are specific to the 6 Series E24 635CSi produced during 1989. These technical specifications ensure that parts like the Center Mount (26121209532) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Drive shaft attach.parts center bearing assembly?
- Each item in the Drive shaft attach.parts center bearing corresponds to the numbered list below the illustration. For the 6 Series E24 635CSi, you can identify the Center Mount by locating its position on the schematic, which then links to the official BMW part number 26121209532 for the Drive Shaft section.
