Drive shaft,univ.joint/center mounting for BMW 7 Series E23 735i (1982)

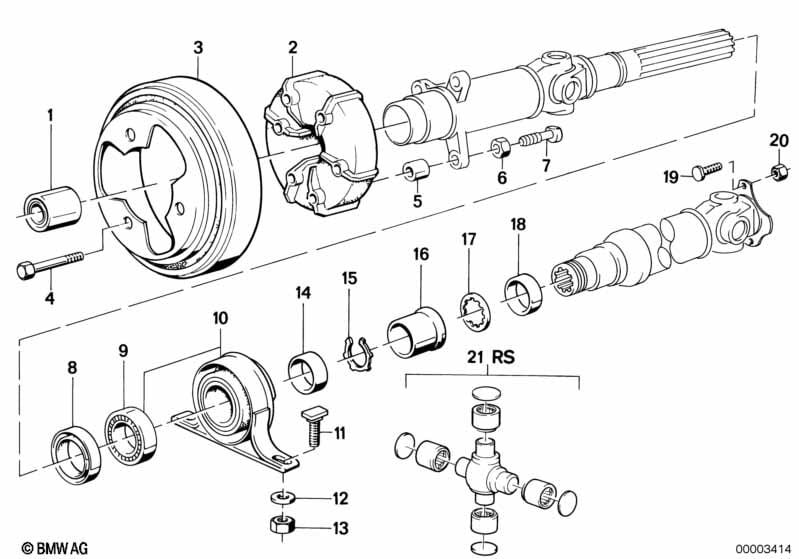

This Drive shaft,univ.joint/center mounting technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Centering sleeve | 1 | 26117526611 | $11.32 | Shop at ECS Tuning | |||||
| 02 | Universal joint | LK=96MM/12 | 1 | 09/1980 | 26117511454 | $120.93 | Shop at ECS Tuning | |||
| 02 | Universal joint | LK=96MM/12 | 1 | 09/1980 | 26117511454 | $120.93 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Hex bolt | M12X1,5X56 | 6 | 09/1980 | 27101220647 | $2.16 | Shop at ECS Tuning | |||
| 03 | Vibration damper | 1 | 23131220589 | $220.94 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M12X1,5X56 | 6 | 03/1984 | 27101220647 | $2.16 | Shop at ECS Tuning | |||
| 04 | Hex bolt | M12X70 | 6 | 26111107834 | $2.11 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M12X1,5X56 | 6 | 27101220647 | $2.16 | Shop at ECS Tuning | ||||
| 06 | Self-locking hex nut | M12X1,5-10-PHR | 6 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| 08 | Dust protection | 1 | 26113748138 | $1.59 | Shop at ECS Tuning | |||||
| 09 | Grooved ball bearing | D=55/D=30 | 1 | 26121225071 | $26.16 | Shop at ECS Tuning | ||||
| 10 | Center Mount | 1 | 26111206502 | $125.71 | Shop at ECS Tuning | |||||
| 11 | Square headed bolt | M8X18 | 2 | 23711130250 | $4.27 | Shop at ECS Tuning | ||||
| 12 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 13 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 14 | Dust protection | 1 | 26121100992 | $2.48 | Shop at ECS Tuning | |||||
| 15 | Lock Ring | 1 | 26123648156 | $0.98 | Shop at ECS Tuning | |||||
| 16 | Threaded ring with clamp-ring | 1 | 26117514037 | $12.52 | Shop at ECS Tuning | |||||
| 17 | Tooth washer | 1 | 09/1982 | 26111100692 | $0.55 | Shop at ECS Tuning | ||||
| 18 | Clamp ring | 1 | 09/1982 | 26111207480 | $5.27 | ENDED | Shop at ECS Tuning | |||
| 19 | Knurled bolt | M10X25 | 4 | 26111206718 | $2.18 | Shop at ECS Tuning | ||||
| 20 | Self-locking hex nut | M10 | 4 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 21 | Repair kit swivcl joint | 2 | 26117518304 | $76.12 | Shop at ECS Tuning | |||||
