Drive shaft-cen.bearing-const.vel.joint for BMW 5 Series E34 535i (1993)

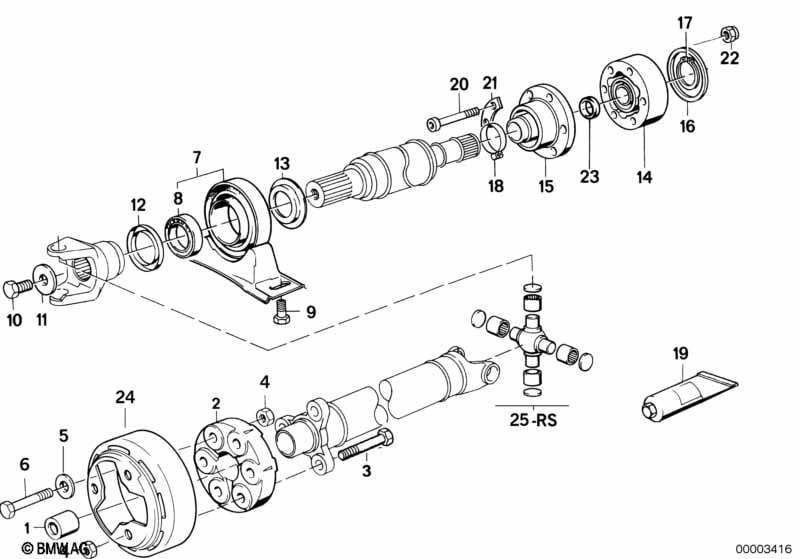

This Drive shaft-cen.bearing-const.vel.joint technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Centering sleeve | 1 | 26117526611 | $11.32 | Shop at ECS Tuning | |||||
| 02 | Universal joint | LK=96MM/12 | 1 | 26117511454 | $120.93 | Shop at ECS Tuning | ||||
| LK = bolt hole | ||||||||||
| 04 | Self-locking hex nut | M12X1,5-10-PHR | 6 | 12/2004 | 07129900047 | $0.62 | Shop at ECS Tuning | |||
| 05 | Shim | 12X2,5-ZNS3 | 3 | 05/2018 | 26111225404 | $0.43 | Shop at ECS Tuning | |||
| 05 | Shim | 12X2,5-ZNS3 | 3 | 05/2018 | 26112463728 | Shop at ECS Tuning | ||||
| 05 | Shim | 12X2,5-ZNS3 | 3 | 26112463728 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M12X1,5X60 | 3 | 26111225754 | $7.70 | Shop at ECS Tuning | ||||
| 07 | Center Mount | 55X13X30 | 1 | 26121226723 | $83.95 | Shop at ECS Tuning | ||||
| 08 | Grooved ball bearing | D=55/D=30 | 1 | 26121225071 | $26.16 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M8X20-ZNS3 | 2 | 07147165618 | $0.73 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M12X1,5X25 | 1 | 07119911694 | $0.82 | Shop at ECS Tuning | ||||
| 11 | Washer | D=36MM/ZNS3 | 1 | 26117572710 | $2.27 | Shop at ECS Tuning | ||||
| 12 | Dust protection | 1 | 26111225089 | $2.67 | Shop at ECS Tuning | |||||
| 13 | Dustcover plate | D=30X58X5,5-CRH | 1 | 26111225088 | $3.08 | Shop at ECS Tuning | ||||
| 14 | Const.-veloc. joint wthout knurled bush | LK=80MM (Z=24) | 1 | 26111226881 | $188.25 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Spacer | 1 | 26111226887 | $8.17 | Shop at ECS Tuning | |||||
| LK = bolt hole Z=Number of teeth |
||||||||||
| 15 | Rubber boot | 1 | 26111225015 | $17.05 | Shop at ECS Tuning | |||||
| 16 | Washer-gasket | VL-93 | 1 | 26111229502 | $2.57 | Shop at ECS Tuning | ||||
| 17 | Snap ring | 22,5X1,2 | 1 | 26111225017 | $0.75 | Shop at ECS Tuning | ||||
| 18 | Hose clamp | L=115MM | 1 | 26111225018 | $0.85 | Shop at ECS Tuning | ||||
| 19 | Lubricat.mat.Optitemp 2 LN 584 LO | 100G | 1 | 12/1993 | 83190447919 | Shop at ECS Tuning | ||||
| 19 | Lubricat.mat.Optitemp 2 LN 584 LO | 100G | 1 | 83195B4D4F9 | Shop at ECS Tuning | |||||
| 20 | Knurled bolt | M8X60 | 6 | 26101227930 | $1.28 | Shop at ECS Tuning | ||||
| 21 | Reinforcement | D=9MM/PHR | 3 | 26111225016 | $1.20 | Shop at ECS Tuning | ||||
| 22 | Self-locking hex nut | M8 | 6 | 26111227728 | $0.62 | Shop at ECS Tuning | ||||
| 23 | Spacer | 1 | 26111226887 | $8.17 | Shop at ECS Tuning | |||||
| 24 | Vibration damper | 1 | 23131220589 | $220.94 | Shop at ECS Tuning | |||||
