Drive shaft-cen.bearing-const.vel.joint for BMW 3 Series E30 316i (1994)

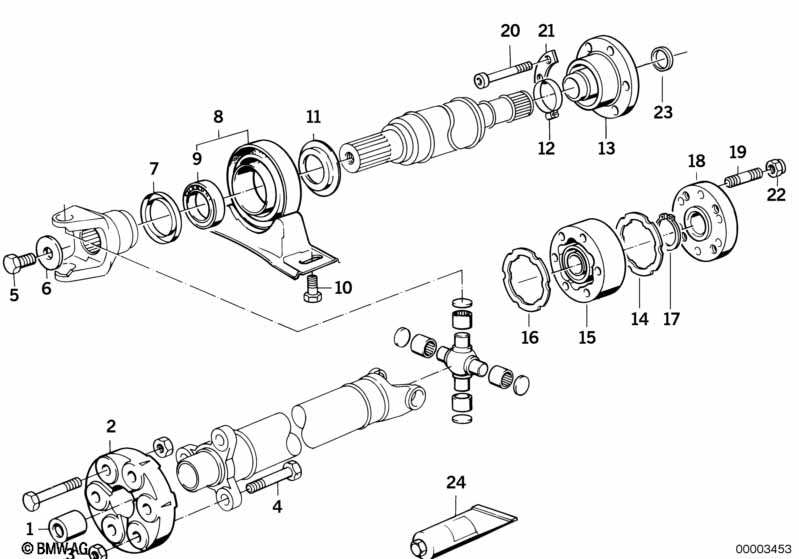

This Drive shaft-cen.bearing-const.vel.joint technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to CONST.VELO.JOINT DRIVE SHAFT AUTO.TRANSM |
|||||||||
| 01 | Centering sleeve | 1 | 26117526611 | $11.32 | Shop at ECS Tuning | |||||
| 02 | Universal joint | LK=78MM/D=110MM | 1 | 26111225624 | $92.56 | Shop at ECS Tuning | ||||
| LK = bolt hole | ||||||||||
| 03 | Self-locking hex nut | M10 | 6 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M10X50-10.9 | 6 | 26117526705 | $1.77 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M12X1,5X25 | 1 | 07119911694 | $0.82 | Shop at ECS Tuning | ||||
| 06 | Washer | D=36MM/ZNS3 | 1 | 26117572710 | $2.27 | Shop at ECS Tuning | ||||
| 07 | Dust protection | 1 | 26111225089 | $2.67 | Shop at ECS Tuning | |||||
| 08 | Center Mount | 55X13X30 | 1 | 26121226723 | $83.95 | Shop at ECS Tuning | ||||
| 09 | Grooved ball bearing | D=55/D=30 | 1 | 26121225071 | $26.16 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M8X22-SB-Z4 | 2 | 07119915160 | ENDED | Shop at ECS Tuning | ||||
| 11 | Dustcover plate | D=30X58X5,5-CRH | 1 | 26111225088 | $3.08 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | L=115MM | 1 | 26111225018 | $0.85 | Shop at ECS Tuning | ||||
| 13 | Rubber boot | 1 | 26111225015 | $17.05 | Shop at ECS Tuning | |||||
| 14 | Washer-gasket | VL-93 | 1 | 26111229502 | $2.57 | Shop at ECS Tuning | ||||
| 15 | Const.-veloc. joint wthout knurled bush | LK=80MM (Z=24) | 1 | 26111226881 | $188.25 | Shop at ECS Tuning | ||||
| LK = bolt hole Z=Number of teeth |
||||||||||
| 16 | Washer-gasket | VL-93 | 1 | 26111229502 | $2.57 | Shop at ECS Tuning | ||||
| 17 | Snap ring | 22,5X1,2 | 1 | 26111225017 | $0.75 | Shop at ECS Tuning | ||||
| 18 | Drive flange | 1 | 26111225661 | ENDED | Shop at ECS Tuning | |||||
| 19 | Stud bolt | M10X30 | 4 | 26111225664 | Shop at ECS Tuning | |||||
| 20 | Fillister-head screw | M8X50 | 6 | 07119919988 | $1.63 | ENDED | Shop at ECS Tuning | |||
| 21 | Reinforcement | D=9MM/PHR | 3 | 26111225016 | $1.20 | Shop at ECS Tuning | ||||
| 22 | Self-locking hex nut | M10 | 4 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 23 | Spacer | 1 | 26111226887 | $8.17 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
