Drive shaft-cen.bearing-const.vel.joint for BMW 5 Series E34 540i (1995)

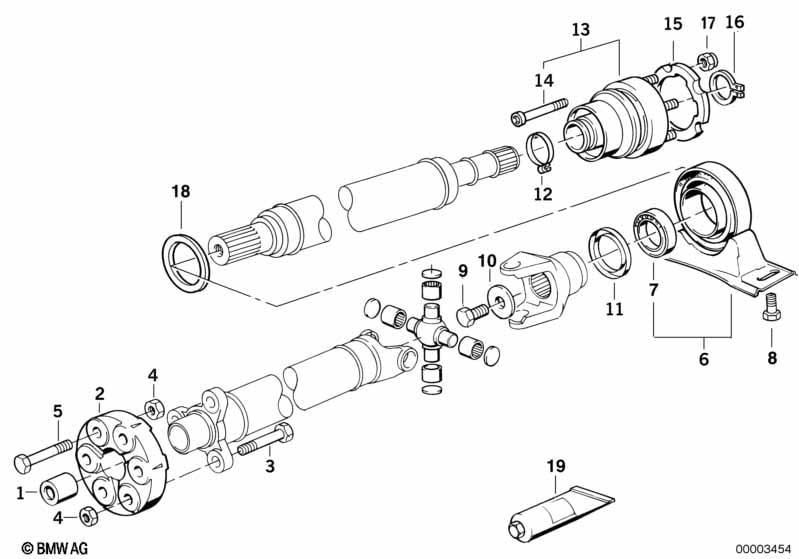

This Drive shaft-cen.bearing-const.vel.joint technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Centering sleeve | 1 | 26117526611 | $11.32 | Shop at ECS Tuning | |||||
| 02 | Universal joint | LK=105MM/14 | 1 | 26112228781 | $122.95 | Shop at ECS Tuning | ||||
| LK = bolt hole | ||||||||||
| 03 | Hex bolt | M14X1,5X73 | 3 | 26111227829 | $3.47 | Shop at ECS Tuning | ||||
| 04 | Collar nut | M14X1,5 | 6 | 26111227830 | $1.35 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M14X1,5X73 | 3 | 26111227829 | $3.47 | Shop at ECS Tuning | ||||
| 06 | Center Mount | 1 | 26121226657 | $87.37 | Shop at ECS Tuning | |||||
| 07 | Grooved ball bearing | D=55/D=35 | 1 | 26121225002 | $30.45 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M8X16 | 2 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M12X1,5X25 | 1 | 07119911694 | $0.82 | Shop at ECS Tuning | ||||
| 10 | Washer | D=36MM/ZNS3 | 1 | 26117572710 | $2.27 | Shop at ECS Tuning | ||||
| 13 | Constant-velocity joint wth knurled bush | LK=94MM (Z=28) | 1 | 26111229524 | $192.76 | Shop at ECS Tuning | ||||
| LK = bolt hole Z=Number of teeth |
||||||||||
| 14 | Knurled bolt | M10X65 | 6 | 26111227022 | $1.77 | Shop at ECS Tuning | ||||
| 15 | Washer-gasket | VL-107 | 1 | 26111229504 | $2.90 | Shop at ECS Tuning | ||||
| 16 | Snap ring | 26,5X1,5 | 1 | 33211225648 | $0.42 | Shop at ECS Tuning | ||||
| 17 | Self-locking hex nut | M10 | 6 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 19 | Lubricat.mat.Optitemp 2 LN 584 LO | 100G | 1 | 05/1999 | 83190447919 | Shop at ECS Tuning | ||||
| 19 | Lubricat.mat.Optitemp 2 LN 584 LO | 100G | 1 | 83195B4D4F9 | Shop at ECS Tuning | |||||
