Drive shaft,univ.joint/center mounting for BMW 3 Series E30 320i (1992)

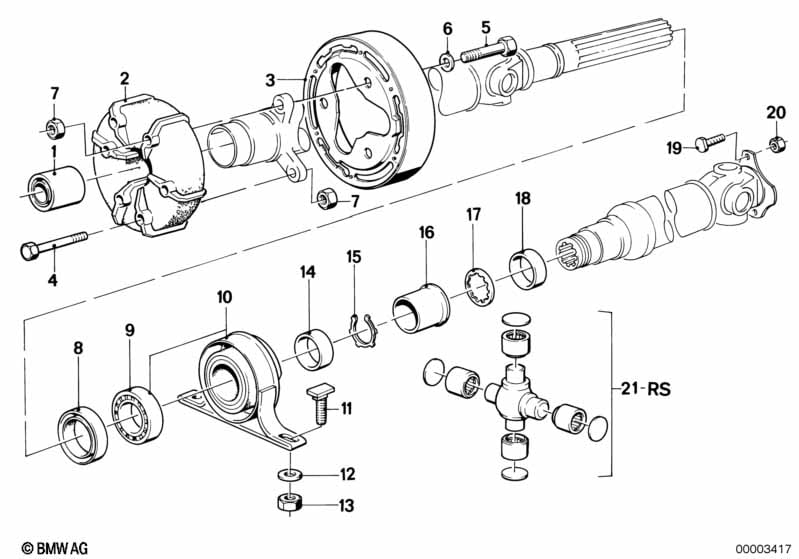

This Drive shaft,univ.joint/center mounting technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 02 | Universal joint | LK=78MM/D=110MM | 1 | 26111225624 | $92.56 | Shop at ECS Tuning | ||||
| LK = bolt hole | ||||||||||
| 04 | Hex bolt | M10X50/10.9 | 3 | 26111209498 | $2.73 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M10X50/10.9 | 3 | 26111209498 | $2.73 | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M10 | 6 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Dust protection | 1 | 26111225089 | $2.67 | Shop at ECS Tuning | |||||
| 09 | Grooved ball bearing | D=55/D=30 | 1 | 26121225071 | $26.16 | Shop at ECS Tuning | ||||
| 10 | Center Mount | 55X13X30 | 1 | 11/1987 | 26121226723 | $83.95 | Shop at ECS Tuning | |||
| 13 | Hex bolt with washer | M8X20-ZNS3 | 2 | 11/1987 | 07147165618 | $0.73 | Shop at ECS Tuning | |||
| 14 | Dustcover plate | D=30X58X5,5-CRH | 1 | 26111225088 | $3.08 | Shop at ECS Tuning | ||||
| 15 | Lock Ring | 1 | 26123648156 | $0.98 | Shop at ECS Tuning | |||||
| 16 | Threaded ring with clamp-ring | 1 | 26117514037 | $12.52 | Shop at ECS Tuning | |||||
| 17 | Tooth washer | 1 | 26111209285 | $2.73 | Shop at ECS Tuning | |||||
| 18 | Threaded ring with clamp-ring | 1 | 26117514037 | $12.52 | Shop at ECS Tuning | |||||
| 19 | Knurled bolt | M10X25 | 4 | 26111206718 | $2.18 | Shop at ECS Tuning | ||||
| 20 | Self-locking hex nut | M10 | 4 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 21 | Repair kit swivcl joint | 1 | 26117518304 | $76.12 | Shop at ECS Tuning | |||||
