Drive shaft-cen.bearing-const.vel.joint for BMW 7 Series E38 740i (1996)

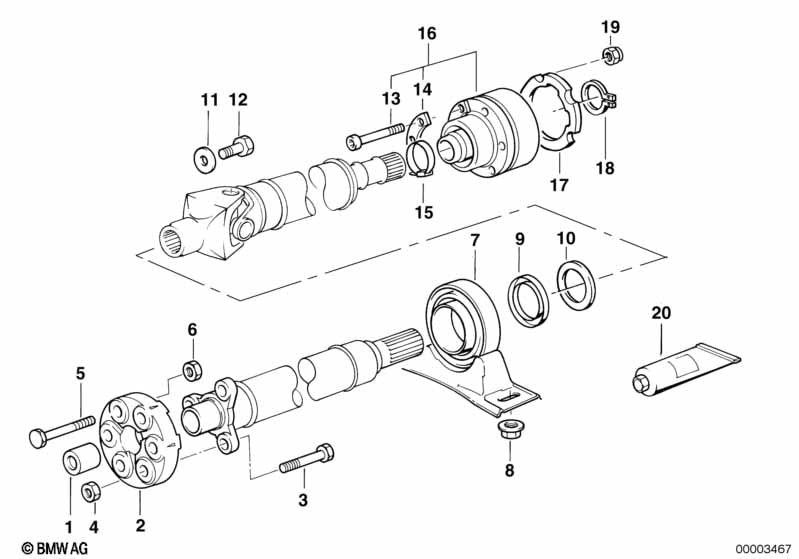

This Drive shaft-cen.bearing-const.vel.joint technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Centering sleeve | 1 | 26117526611 | $11.32 | Shop at ECS Tuning | |||||
| 02 | Universal joint | LK=105MM/14 | 1 | 26112228781 | $122.95 | Shop at ECS Tuning | ||||
| LK = bolt hole | ||||||||||
| 03 | Hex bolt | M14X1,5X73 | 3 | 26111227829 | $3.47 | Shop at ECS Tuning | ||||
| 04 | Collar nut | M14X1,5 | 3 | 26111227830 | $1.35 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M14X1,5X73 | 3 | 26111227829 | $3.47 | Shop at ECS Tuning | ||||
| 06 | Collar nut | M14X1,5 | 3 | 26111227830 | $1.35 | Shop at ECS Tuning | ||||
| 07 | Center Mount | 1 | 26121227997 | $81.78 | Shop at ECS Tuning | |||||
| 08 | Flange nut with washer | M8-8-ZNS3 | 2 | 26117574872 | $0.80 | Shop at ECS Tuning | ||||
| 10 | Shim | D=35X41X1,0-CHR | 1 | 26111227583 | $6.27 | Shop at ECS Tuning | ||||
| 11 | Washer | D=40MM/ZNS3 | 1 | 26111226237 | $3.05 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M12X1,5X25 | 1 | 07119911694 | $0.82 | Shop at ECS Tuning | ||||
| 13 | Knurled bolt | M10X65 | 6 | 26111227022 | $1.77 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Flat gasket, metal | VL-107 | 1 | 26111229079 | $2.73 | Shop at ECS Tuning | ||||
| CONSTANT VELOCITY JOINT | ||||||||||
| 14 | Reinforcement | D=11MM/ZN | 3 | 26111227142 | $2.28 | Shop at ECS Tuning | ||||
| 15 | Muffler clamp | D=34MM | 1 | 06/2004 | 26117542264 | $2.28 | Shop at ECS Tuning | |||
| 16 | Constant-velocity joint wth knurled bush | LK=94MM (Z=28) | 1 | 26111229524 | $192.76 | Shop at ECS Tuning | ||||
| LK = bolt hole Z=Number of teeth |
||||||||||
| 17 | Washer-gasket | VL-107 | 1 | 26111229504 | $2.90 | Shop at ECS Tuning | ||||
| 18 | Snap ring | 26,5X1,5 | 1 | 33211225648 | $0.42 | Shop at ECS Tuning | ||||
| 19 | Hex nut with ribs | M10/SW16 | 6 | 26111227843 | $0.75 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Balance weight | 2,3 GRAMM/SW16 | X | 26101229501 | $3.50 | Shop at ECS Tuning | ||||
| -- | Balance weight | 1,4 GRAMM/SW16 | X | 26101229518 | $3.50 | Shop at ECS Tuning | ||||
| 20 | Lubricat.mat.Optitemp 2 LN 584 LO | 100G | 1 | 07/2001 | 83190447919 | Shop at ECS Tuning | ||||
| 20 | Lubricat.mat.Optitemp 2 LN 584 LO | 100G | 1 | 83195B4D4F9 | Shop at ECS Tuning | |||||
