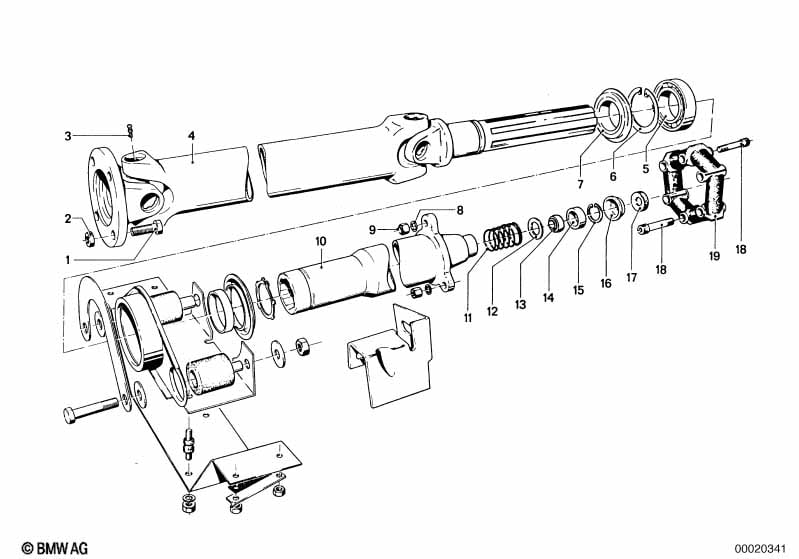

Drive shaft,univ.joint/center mounting for BMW 1500-2000CS 2000ti (1968)
This Drive shaft,univ.joint/center mounting technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | M8X22 | 4 | 31213628162 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 02 | Self-locking hex nut | M8 | 6 | 03/1987 | 07129922714 | $0.17 | ENDED | Shop at ECS Tuning | ||
| 02 | Self-locking hex nut | M8-8-ZNNI SI | 6 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 05 | Grooved ball bearing | D=55/D=30 | 1 | 26121225071 | $26.16 | Shop at ECS Tuning | ||||
| 07 | Dust protection | 1 | 33131061540 | ENDED | Shop at ECS Tuning | |||||
| 08 | Washer | 3 | 26111108196 | $1.86 | ENDED | Shop at ECS Tuning | ||||
| 09 | Self-locking hex nut | M10-10 ZNS3 | 6 | 33326768900 | $0.78 | Shop at ECS Tuning | ||||
| 11 | Compression spring | 1 | 26113648104 | $6.95 | ENDED | Shop at ECS Tuning | ||||
| 13 | Guide bush | 1 | 26111100389 | $6.27 | ENDED | Shop at ECS Tuning | ||||
| 14 | Ball joint | 1 | 26111100391 | $6.85 | ENDED | Shop at ECS Tuning | ||||
| 15 | Lock Ring | 28X1,2 DIN472 | 1 | 33307745110 | $0.51 | Shop at ECS Tuning | ||||
| 16 | Cap | 1 | 26113648115 | ENDED | Shop at ECS Tuning | |||||
| 17 | Bump stop | 1 | 26111100891 | $7.81 | Shop at ECS Tuning | |||||
| 18 | Fillister-head screw | 6 | 33213039707 | $2.46 | ENDED | Shop at ECS Tuning | ||||
| 19 | Universal joint | 1 | 33213039704 | $67.29 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
