Drive shaft,univ.joint/center mounting for BMW 1500-2000CS 2000 (1968)

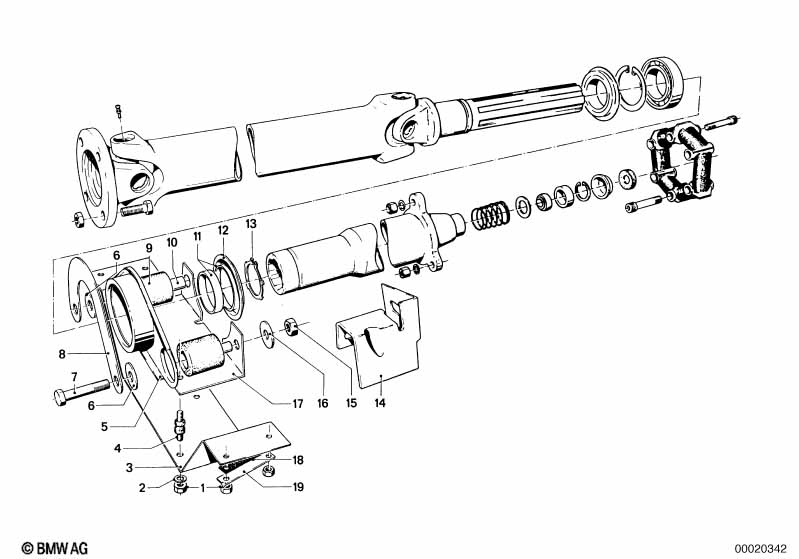

This Drive shaft,univ.joint/center mounting technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Protection plate | 1 | 26123648161 | ENDED | Shop at ECS Tuning | |||||
| 04 | Vibration damper | 7 | 64218042132 | $8.10 | Shop at ECS Tuning | |||||
| 05 | Center Mount | 1 | 26123748130 | ENDED | Shop at ECS Tuning | |||||
| 06 | Washer | 2 | 26123648157 | ENDED | Shop at ECS Tuning | |||||
| 08 | Protection plate | 1 | 26123648158 | ENDED | Shop at ECS Tuning | |||||
| 09 | Bump stop | 2 | 26123648154 | $11.75 | ENDED | Shop at ECS Tuning | ||||
| 10 | Pipe | 2 | 26123648160 | ENDED | Shop at ECS Tuning | |||||
| 11 | Ring | 1 | 26121101310 | $1.68 | Shop at ECS Tuning | |||||
| 12 | Dust protection | 1 | 33131061540 | ENDED | Shop at ECS Tuning | |||||
| 13 | Lock Ring | 1 | 26123648156 | $0.98 | Shop at ECS Tuning | |||||
| 15 | Self-locking hex nut | M8 | 2 | 03/1987 | 07129922714 | $0.17 | ENDED | Shop at ECS Tuning | ||
| 15 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 16 | Washer | 2 | 13110642194 | ENDED | Shop at ECS Tuning | |||||
| 17 | Holder | 1 | 26123648162 | ENDED | Shop at ECS Tuning | |||||
| 19 | Lock Ring | 2 | 26123748136 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
