Drive shaft attach.parts center bearing for BMW 2.5CS-3.0CSL 3.0CSL (1973)

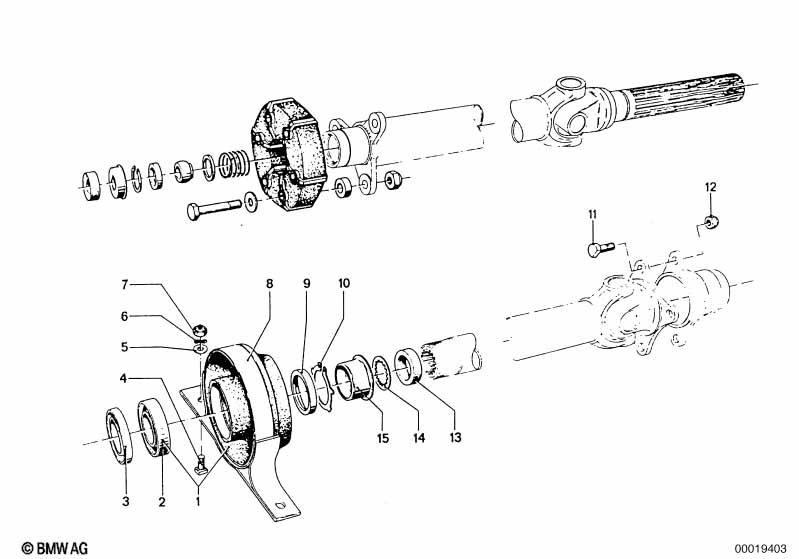

This Drive shaft attach.parts center bearing technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Center Mount | 1 | 26111206502 | $125.71 | Shop at ECS Tuning | |||||
| 02 | Grooved ball bearing | D=55/D=30 | 1 | 26121225071 | $26.16 | Shop at ECS Tuning | ||||
| 03 | Dust protection | 1 | 26113748138 | $1.59 | Shop at ECS Tuning | |||||
| 04 | Square headed bolt | M8X18 | 2 | 23711130250 | $4.27 | Shop at ECS Tuning | ||||
| 05 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 06 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Center Mount | 1 | 26111206502 | $125.71 | Shop at ECS Tuning | |||||
| 09 | Dust protection | 1 | 26121100992 | $2.48 | Shop at ECS Tuning | |||||
| 10 | Lock Ring | 1 | 26123648156 | $0.98 | Shop at ECS Tuning | |||||
| 11 | Fillister-head screw | M10X25 | 4 | 26111101015 | $0.91 | Shop at ECS Tuning | ||||
| 12 | Hex nut | 4 | 26111204183 | $0.30 | ENDED | Shop at ECS Tuning | ||||
| 13 | Clamp ring | 1 | 26111207480 | $5.27 | ENDED | Shop at ECS Tuning | ||||
| 14 | Tooth washer | 1 | 26111100692 | $0.55 | Shop at ECS Tuning | |||||
| 15 | Threaded ring with clamp-ring | 1 | 26117514037 | $12.52 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
