Drive shaft,univ.joint/center mounting for BMW 2500-3.3Li 3.0S (1977)

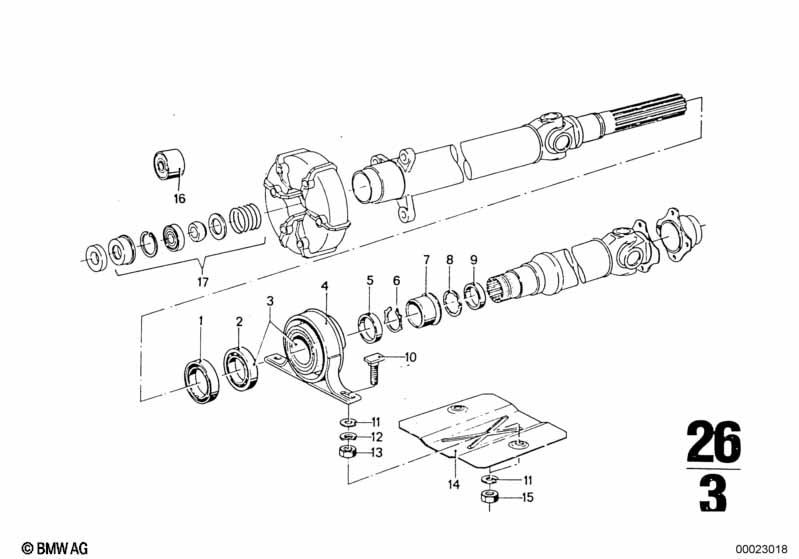

This Drive shaft,univ.joint/center mounting technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Grooved ball bearing | D=55/D=30 | 1 | 26121225071 | $26.16 | Shop at ECS Tuning | ||||
| 03 | Center Mount | 1 | 26111206502 | $125.71 | Shop at ECS Tuning | |||||
| 06 | Lock Ring | 1 | 26123648156 | $0.98 | Shop at ECS Tuning | |||||
| 07 | Threaded ring with clamp-ring | 1 | 26117514037 | $12.52 | Shop at ECS Tuning | |||||
| 08 | Tooth washer | 1 | 26111100692 | $0.55 | Shop at ECS Tuning | |||||
| 09 | Clamp ring | 1 | 26111207480 | $5.27 | ENDED | Shop at ECS Tuning | ||||
| 11 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 13 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Drive shaft,univ.joint/center mounting?
- This technical diagram illustrates the Drive shaft,univ.joint/center mounting within the Drive Shaft group for the 2500-3.3Li 3.0S produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Grooved ball bearing (Part #26121225071).
- Which models use the hardware listed in this Drive shaft,univ.joint/center mounting?
- The hardware and components featured in the Drive shaft,univ.joint/center mounting are specific to the 2500-3.3Li 3.0S produced during 1977. These technical specifications ensure that parts like the Grooved ball bearing (26121225071) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Drive shaft,univ.joint/center mounting assembly?
- Each item in the Drive shaft,univ.joint/center mounting corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Grooved ball bearing by locating its position on the schematic, which then links to the official BMW part number 26121225071 for the Drive Shaft section.
