Drive shaft-cen.bearing-const.vel.joint for BMW 3 Series E46 330Ci (2006)

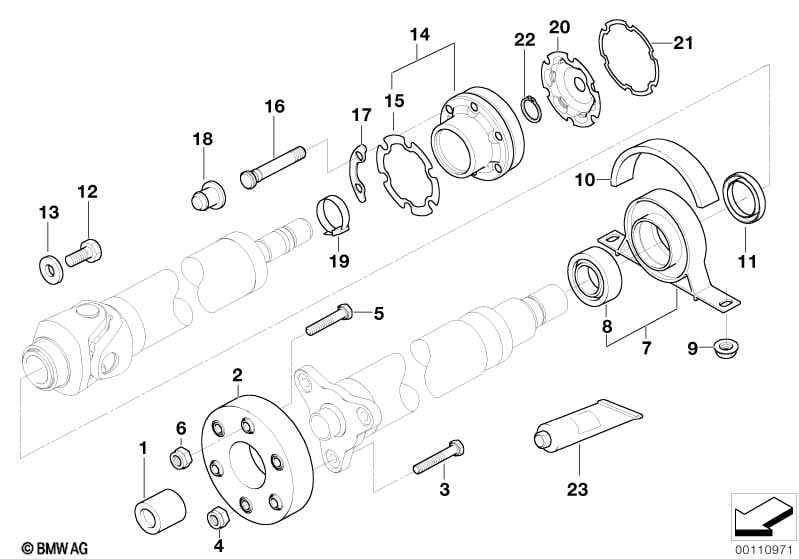

This Drive shaft-cen.bearing-const.vel.joint technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Centering sleeve | 1 | 26117526611 | $11.32 | Shop at ECS Tuning | |||||
| 02 | Universal joint | LK=96MM/12 | 1 | 26117511454 | $120.93 | Shop at ECS Tuning | ||||
| LK = bolt hole | ||||||||||
| 03 | Hex bolt | M12X1,5X58-ZNS3 | 3 | 26117523709 | $2.73 | Shop at ECS Tuning | ||||
| 04 | Self-locking hex nut | M12X1,5-10-ZNS3 | 3 | 12/2004 | 26127536563 | $1.00 | Shop at ECS Tuning | |||
| 05 | Hex bolt | M12X1,5X58-ZNS3 | 3 | 26117523709 | $2.73 | Shop at ECS Tuning | ||||
| 06 | Self-locking hex nut | M12X1,5-10-ZNS3 | 3 | 12/2004 | 26127536563 | $1.00 | Shop at ECS Tuning | |||
| 07 | Center Mount, aluminium | 1 | 26127501257 | $79.46 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Butyl tape, Ködiplast HV 578-59 | 190X20X8MM | 1 | 83225A1B482 | Shop at ECS Tuning | |||||
| 09 | Flange nut with washer | M8-8-ZNS3 | 2 | 26117574872 | $0.80 | Shop at ECS Tuning | ||||
| 10 | Butyl tape, Ködiplast HV 578-59 | 190X20X8MM | 1 | 83225A1B482 | Shop at ECS Tuning | |||||
| 11 | Intermediate ring | D=30X36X1,0-CRH | 1 | 26117514120 | $2.18 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M12X1,5X25 | 1 | 07119911694 | $0.82 | Shop at ECS Tuning | ||||
| 13 | Washer | D=36MM/ZNS3 | 1 | 26117572710 | $2.27 | Shop at ECS Tuning | ||||
| 14 | Const.-veloc. joint wthout knurled bush | LK=86MM (Z=32) | 1 | 09/2002 | 26117548392 | $188.25 | Shop at ECS Tuning | |||
| LK = bolt hole Z=Number of teeth |
||||||||||
| 15 | Flat gasket, metal | VL-103 | 1 | 26111229078 | $8.03 | Shop at ECS Tuning | ||||
| 16 | Torx screw with ribs | M10X46-ZNS3 | 6 | 33217571990 | $1.67 | Shop at ECS Tuning | ||||
| 17 | Reinforcement | D=10MM ZNS3 | 3 | 33207572717 | $2.57 | Shop at ECS Tuning | ||||
| 18 | Balance weight | 3,0GR./D=12MM | X | 26117500372 | $5.43 | Shop at ECS Tuning | ||||
| if necessary | ||||||||||
| 18 | Balance weight | 1,5GR./D=12MM | X | 26117500373 | $5.43 | Shop at ECS Tuning | ||||
| if necessary | ||||||||||
| 19 | Muffler clamp | D=34MM | 1 | 06/2004 | 26117542264 | $2.28 | Shop at ECS Tuning | |||
| 20 | End cover with gasket | 1 | 09/2002 | 26117540778 | $5.67 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Const.-veloc. joint wthout knurled bush | LK=86MM (Z=32) | X | 09/2002 | 26117526823 | $174.56 | ENDED | Shop at ECS Tuning | ||
| 22 | Snap ring | 22,5X1,2 | 1 | 26111225017 | $0.75 | Shop at ECS Tuning | ||||
| 23 | Lubricat.mat.Optitemp 2 LN 584 LO | 100G | 1 | 83195B4D4F9 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
