Drive shaft, single components, 4-wheel for BMW 3 Series E91 LCI 330xd (2008)

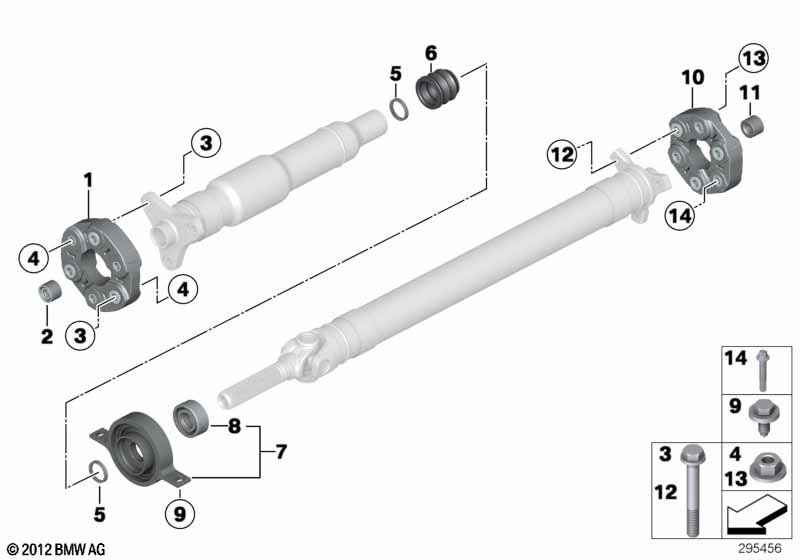

This Drive shaft, single components, 4-wheel technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Universal joint | LK=105MM/10 | 1 | 26117573276 | $128.45 | Shop at ECS Tuning | ||||
| LK = bolt hole | ||||||||||
| 02 | Centering sleeve | 1 | 26117526611 | $11.32 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M10X61-10-ZNS3 | 3 | 26117572709 | $0.86 | Shop at ECS Tuning | ||||
| only applies to Transfer box |
||||||||||
| 03 | Hex bolt with washer | M10X47,5-ZNS3 | 3 | 26107542194 | $2.57 | Shop at ECS Tuning | ||||
| 04 | Self-locking hex nut | M10 | 3 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Damper ring | D=39/D=35 | 2 | 11/2009 | 26117527617 | $1.82 | Shop at ECS Tuning | |||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 05 | Damper ring | D=34/D=30 | 2 | 09/2007 | 26117527519 | $1.77 | Shop at ECS Tuning | |||
| 06 | Rubber boot, center bearing | 1 | 11/2024 | 26117526628 | $8.45 | Shop at ECS Tuning | ||||
| 06 | Rubber boot, center bearing | 1 | 26118881330 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 06 | Rubber boot, center bearing | 1 | 09/2007 | 26117526627 | $4.82 | Shop at ECS Tuning | ||||
| 07 | Center Mount, aluminium | 1 | 26128615622 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 07 | Center Mount, aluminium | 1 | 09/2007 | 26128615621 | Shop at ECS Tuning | |||||
| 08 | Grooved ball bearing | D=55/D=35 | 1 | 26121225002 | $30.45 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M8X22-8.8-ZNS3 | 2 | 22326760945 | $1.08 | Shop at ECS Tuning | ||||
| 10 | Universal joint | LK=105MM/12 | 1 | 26117610061 | Shop at ECS Tuning | |||||
| 10 | Universal joint | LK=105MM/12 | 1 | 08/2020 | 26117518443 | $159.36 | ENDED | Shop at ECS Tuning | ||
| LK = bolt hole | ||||||||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 10 | Universal joint | LK=105MM/12 | 1 | 09/2007 | 26117610061 | Shop at ECS Tuning | ||||
| LK = bolt hole | ||||||||||
| 11 | Centering sleeve hard | 1 | 26117526806 | $28.35 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M12X1,5X71-ZNS3 | 3 | 26117527475 | $2.08 | Shop at ECS Tuning | ||||
| 13 | Hexagon nut with collar | M12X1,5-10 ZNS3 | 3 | 33326760368 | Shop at ECS Tuning | |||||
| 14 | Torx screw | M12X1,5X55-ZNS3 | 3 | 26118607971 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
