Drive shaft-cen.bearing-const.vel.joint for BMW 7 Series E32 730i (1994)

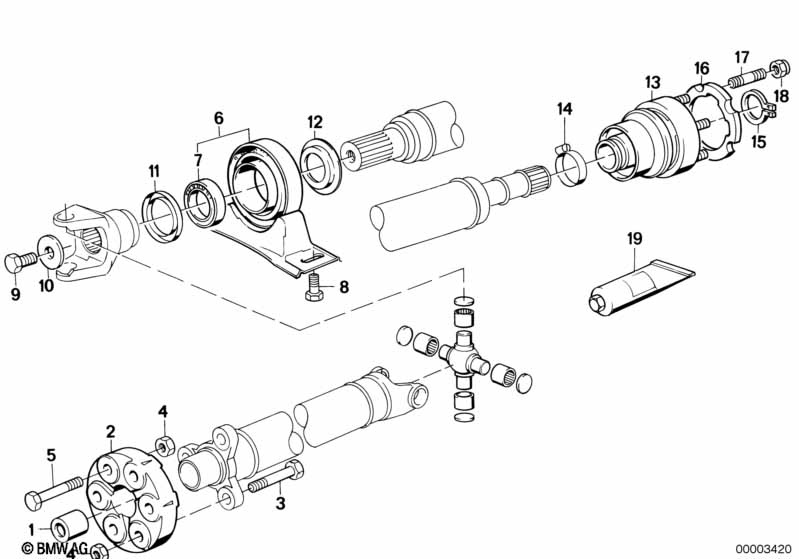

This Drive shaft-cen.bearing-const.vel.joint technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Centering sleeve | 1 | 26117526611 | $11.32 | Shop at ECS Tuning | |||||
| 02 | Universal joint | LK=96MM/12 | 1 | 26117511454 | $120.93 | Shop at ECS Tuning | ||||
| LK = bolt hole | ||||||||||
| 03 | Hex bolt | M12X1,5X56 | 3 | 27101220647 | $2.16 | Shop at ECS Tuning | ||||
| 04 | Self-locking hex nut | M12X1,5-10-PHR | 6 | 12/2004 | 07129900047 | $0.62 | Shop at ECS Tuning | |||
| 05 | Hex bolt | M12X1,5X60 | 3 | 26111225754 | $7.70 | Shop at ECS Tuning | ||||
| 06 | Center Mount | 55X13X30 | 1 | 26121226723 | $83.95 | Shop at ECS Tuning | ||||
| 07 | Grooved ball bearing | D=55/D=30 | 1 | 26121225071 | $26.16 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M8X20-ZNS3 | 2 | 07147165618 | $0.73 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M12X1,5X25 | 1 | 07119911694 | $0.82 | Shop at ECS Tuning | ||||
| 10 | Washer | D=36MM/ZNS3 | 1 | 26117572710 | $2.27 | Shop at ECS Tuning | ||||
| 11 | Dust protection | 1 | 26111225089 | $2.67 | Shop at ECS Tuning | |||||
| 12 | Dustcover plate | D=30X58X5,5-CRH | 1 | 26111225088 | $3.08 | Shop at ECS Tuning | ||||
| 13 | Constant-velocity joint wth knurled bush | LK=86MM (Z=25) | 1 | 26111229075 | $188.25 | Shop at ECS Tuning | ||||
| LK = bolt hole Z=Number of teeth |
||||||||||
| 14 | Muffler clamp | D=34MM | 1 | 06/2004 | 26117542264 | $2.28 | Shop at ECS Tuning | |||
| 15 | Snap ring | 23,5X1,2 | 1 | 26101226635 | $0.55 | Shop at ECS Tuning | ||||
| 16 | Washer-gasket | VL-103 | 1 | 26111229503 | $3.08 | Shop at ECS Tuning | ||||
| 17 | Knurled bolt | M10X65 | 6 | 02/1990 | 26111227022 | $1.77 | Shop at ECS Tuning | |||
| 18 | Self-locking hex nut | M10 | 6 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
