Hardy couplings/center bearing/inner nut for BMW 5 Series F10 528i (2013)

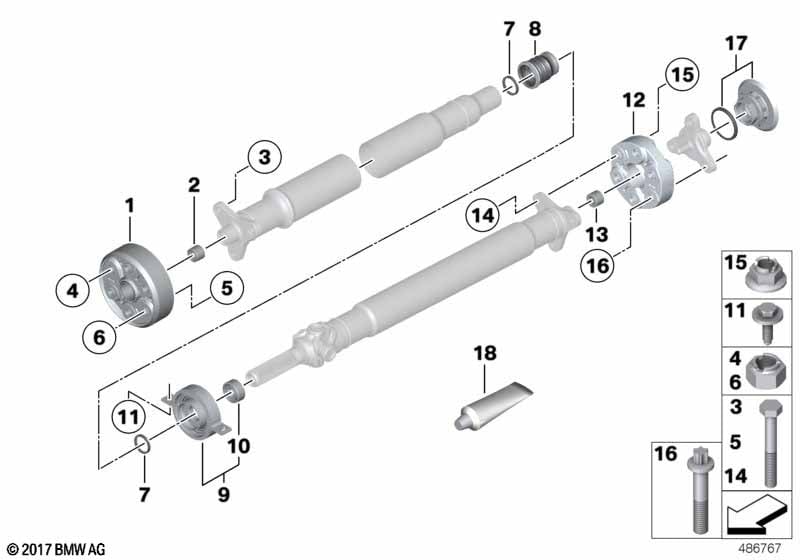

This Hardy couplings/center bearing/inner nut technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic transmission or Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 01 | Universal joint | LK=96MM/12 | 1 | 26117511454 | $120.93 | Shop at ECS Tuning | ||||
| 02 | Centering sleeve hard | 1 | 26117526806 | $28.35 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M12X1,5X64-ZNS3 | 3 | 26117540333 | $2.90 | Shop at ECS Tuning | ||||
| Bolt on driveshaft | ||||||||||
| 04 | Self-locking hex nut | M12X1,5-10-ZNS3 | 3 | 26127536563 | $1.00 | Shop at ECS Tuning | ||||
| Bolt on driveshaft | ||||||||||
| 05 | Hex bolt | M12X1,5X58-ZNS3 | 3 | 26117523709 | $2.73 | Shop at ECS Tuning | ||||
| Bolt on transmission | ||||||||||
| 06 | Self-locking hex nut | M12X1,5-10-ZNS3 | 3 | 26127536563 | $1.00 | Shop at ECS Tuning | ||||
| 07 | Damper ring | D=34/D=30 | 2 | 26117527519 | $1.77 | Shop at ECS Tuning | ||||
| 08 | Rubber boot, center bearing | 1 | 26117526627 | $4.82 | Shop at ECS Tuning | |||||
| 09 | Center Mount, aluminium | 1 | 26127564694 | Shop at ECS Tuning | ||||||
| 09 | Central mount aluminum | 1 | 26128858475 | Shop at ECS Tuning | ||||||
| 11 | Hex bolt with washer | M8X22-8.8-ZNS3 | 2 | 22326760945 | $1.08 | Shop at ECS Tuning | ||||
| 12 | Universal joint | LK=96MM/M12 | 1 | 26117610372 | Shop at ECS Tuning | |||||
| 13 | Centering sleeve hard | 1 | 26117562574 | Shop at ECS Tuning | ||||||
| 14 | Hex bolt | M12X1,5X58-ZNS3 | 3 | 26117523709 | $2.73 | Shop at ECS Tuning | ||||
| 15 | Hexagon nut with collar | M12X1,5-10 ZNS3 | 3 | 33326760368 | Shop at ECS Tuning | |||||
| 16 | ASA-Bolt | M12X1.5X47 | 3 | 26117621344 | Shop at ECS Tuning | |||||
| 17 | Repair kit recessed nut blue | M39X1,5X20 | 1 | 33127607158 | Shop at ECS Tuning | |||||
| Important! Note Repair Manual |
||||||||||
| 18 | Lubricat.mat.Optitemp 2 LN 584 LO | 100G | X | 02/2017 | 83190447919 | Shop at ECS Tuning | ||||
| 18 | Lubricat.mat.Optitemp 2 LN 584 LO | 100G | X | 83195B4D4F9 | Shop at ECS Tuning | |||||
