Drive shaft, single components for BMW 5 Series F10 525d (2013)

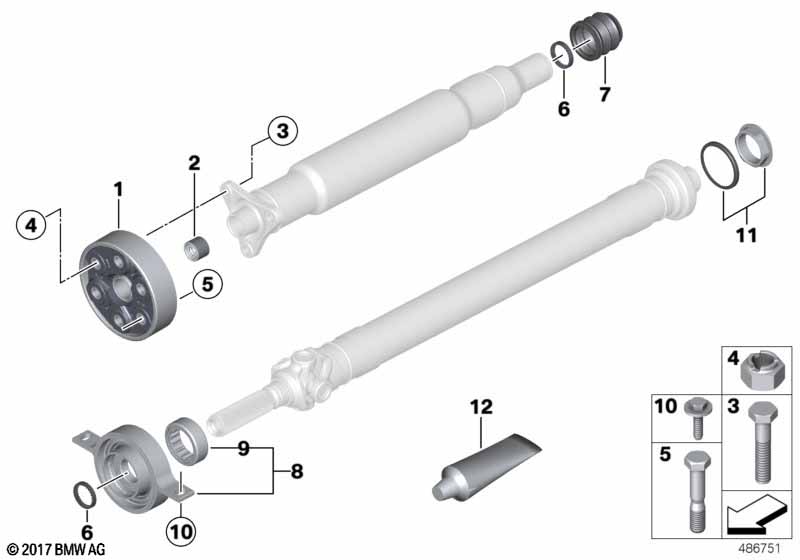

This Drive shaft, single components technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic transmission or Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 01 | Universal joint | LK=96MM | 1 | 26111229360 | $110.44 | Shop at ECS Tuning | ||||
| 02 | Centering sleeve hard | 1 | 26117526806 | $28.35 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission or Sport automatic transmission Bolt on Hardy coupling |
S205A=Yes S2TBA=Yes |
|||||||||
| 03 | Hex bolt | M12X1,5X64-ZNS3 | 3 | 26117540333 | $2.90 | Shop at ECS Tuning | ||||
| 04 | Self-locking hex nut | M12X1,5-10-ZNS3 | 6 | 26127536563 | $1.00 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission or Sport automatic transmission Bolt on transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 05 | Hex bolt | M12X1,5X58-ZNS3 | 3 | 26117523709 | $2.73 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission or Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 06 | Damper ring | D=38/D=33 | 2 | 26117581110 | Shop at ECS Tuning | |||||
| 07 | Rubber boot, center bearing | 1 | 11/2024 | 26117526628 | $8.45 | Shop at ECS Tuning | ||||
| 07 | Rubber boot, center bearing | 1 | 26118881330 | Shop at ECS Tuning | ||||||
| 08 | Center Mount, aluminium | 1 | 26127588544 | $83.95 | Shop at ECS Tuning | |||||
| 09 | Grooved ball bearing | D=55/D=35 | 1 | 26121225002 | $30.45 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M8X24-8.8-ZNS3 | 2 | 26127521853 | $1.18 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission or Sport automatic transmission Important! Note Repair Manual |
S205A=Yes S2TBA=Yes |
|||||||||
| 11 | Repair kit recessed nut blue | M39X1,5X20 | 1 | 33127607158 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission or Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 12 | Lubricat.mat.Optitemp 2 LN 584 LO | 100G | X | 83195B4D4F9 | Shop at ECS Tuning | |||||
